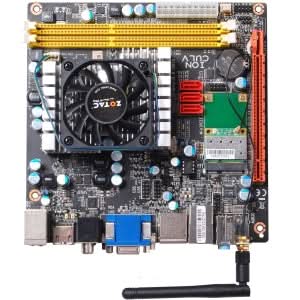

ZOTAC IONITX-N-E Nvidia ION Intel Celeron 743 DDR3 1066MHZ Mini ITX Motherboard
SPECIAL ORDER ITEM
This product is available for special order and may take longer to ship.
AVAILABILITY & SHIPPING
We source this item directly from the OEM as a special order, which may result in longer lead times. We’ll keep you updated throughout the process.
NEED IT SOONER?
Contact us to explore expedited options or find a comparable in-stock alternative.
SPECIAL ORDER FULFILLMENT
Saitech Inc. sources special orders directly from manufacturers and authorized distributors, including hard-to-find, end-of-life, and build-to-order products. These items may have longer lead times, and our team will keep you informed throughout the process.
- Overview
Experience fluid and vivid high-definition video playback with the ultra-compact ZOTAC ION motherboard. The mini-ITX form factor ZOTAC ION motherboards combine a high-performance NVIDIA ION graphics processor with a power-efficient Intel Celeron processor for the ultimate eco-friendly platform that has no troubles handling regular web browsing, e-mail, productivity and HD video playback tasks. NVIDIA PureVideo HD technology harnesses the power of the NVIDIA ION GPUs 16 high-speed stream processors for high-definition Blu-ray playback capabilities. PureVideo HD technology decodes HD video formats and enhances standard-definition videos with the NVIDIA ION GPU for flawless HD and superior SD video playback.
- Chipset Manufacturer: NVIDIA
- Total Processor Supported: 1
- Processor Supported: Celeron
- Front Side Bus: 800 MHz
- 64-bit Processing: Yes
Processor & Chipset
- Number of Memory Slots: 2
- Maximum Memory: 8 GB
- Memory Standard: DDR3-1066/PC3-8500
- Memory Technology: DDR3 SDRAM
Memory
- Controller Type: Serial ATA/300
- RAID Supported: Yes
- RAID Levels: 0
- RAID Levels: 1
- RAID Levels: 0+1
I/O Controller
- Onboard Video: On-board Video Chipset
- Graphics Controller Manufacturer: NVIDIA
Video
- Audio Channels: 5.1
Audio
- Gigabit Ethernet: Yes
- Wireless LAN: Yes
Network & Communication
- Number of Total Expansion Slots: 2
- Total Number of PCI Express Slots: 1
- Number of PCI Express x16 Slots: 1
- Number of Mini PCI Express Slots: 1
I/O Expansions
- eSATA: Yes
- Total Number of USB Ports: 6
- Audio Line In: Yes
- Audio Line Out: Yes
- Microphone Port: Yes
- S/PDIF: Yes
- Number of S/PDIF Out Ports: 2
- VGA: Yes
- HDMI: Yes
- Number of HDMI Outputs: 1
- DVI: Yes
- Number of DVI Outputs: 1
- PS/2 Port: Yes
- Number of PS/2 Ports: 1
Interfaces/Ports
- Number of SATA Interfaces: 3
- Total Number of Onboard USB Ports: 4
- Onboard LEDs Header: Yes
Onboard Interfaces
- Form Factor: Mini ITX
- Width: 6.7"
- Depth: 6.7"
Physical Characteristics
