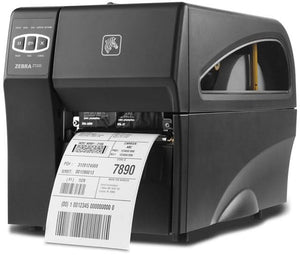

Zebra Label Printer 203DPI Serial USB 4-Inch Print Width ZT220 ZT22042-D01200FZ

Overview

Zebra's ZT220 Industrial Printers are Zebra's most affordable industrial printers that incorporate extensive customer feedback and the learnings from legacy printers-creating innovative printers with a space-saving design. Featuring Zebra's Link-OS environment, the ZT220 provides users with effortless setup, intuitive operation and easy service and maintenance. Whether you are adopting barcode technology for the first time or upgrading existing printer models, the ZT220 is the right choice for a variety of labeling applications. These innovative printers provide many user benefits, and they are ENERGY STAR qualified to save you money throughout their lifecycle. The ZT220 has a durable high-impact polymer case for long-lasting use, and a simple single-use three-button user interface. The ZT220 is ideal for barcode-labeling applications where minimal formal or printer setting changes are required.



Specifications

Model Number:  ZT22042-D01200FZ

Brand:  Zebra

Alt Part Number(s):  ZT22042-D01200FZ

Product Type:  Label Printer



Technical Description

Brand:  Zebra

Model:  ZT22042-D01200FZ

Max Resolution (B&W):  203 dpi

Min Media Size (Custom):  0.763 in

Max Media Size (Custom):  4.5 in x 39 in

Media Sizes:  Roll (0.763 in - 4.5 in)

Max Printing Width:  4.09 in

Max Printing Length:  157 in

Media Thickness Range:  0.003 in - 0.01 in

Roll Maximum Outer Diameter:  8 in

Roll Core Diameter:  3 in, 1 in

Connections:  1 x RS-232 - 9 pin D-Sub (DB-9) ¦ 1 x USB ¦ 1 x LAN

Min Operating Temperature:  32 °F

Max Operating Temperature:  104 °F

Humidity Range Operating:  20 - 85% (non-condensing)

Voltage Required:  AC 120/230 V

Frequency Required:  47 - 63 Hz

Output Voltage:  208 - 230 V AC

Protocols:  Web, SNMP, Telnet

Width:  9.4 in

Depth:  17 in

Height:  11 in



*Product descriptions, images, and part numbers are subject to change and may not accurately reflect manufacturer product alterations. For the latest and most precise information, kindly refer to the manufacturer's website and use the item's manufacturer part number.
