- Overview
Overview

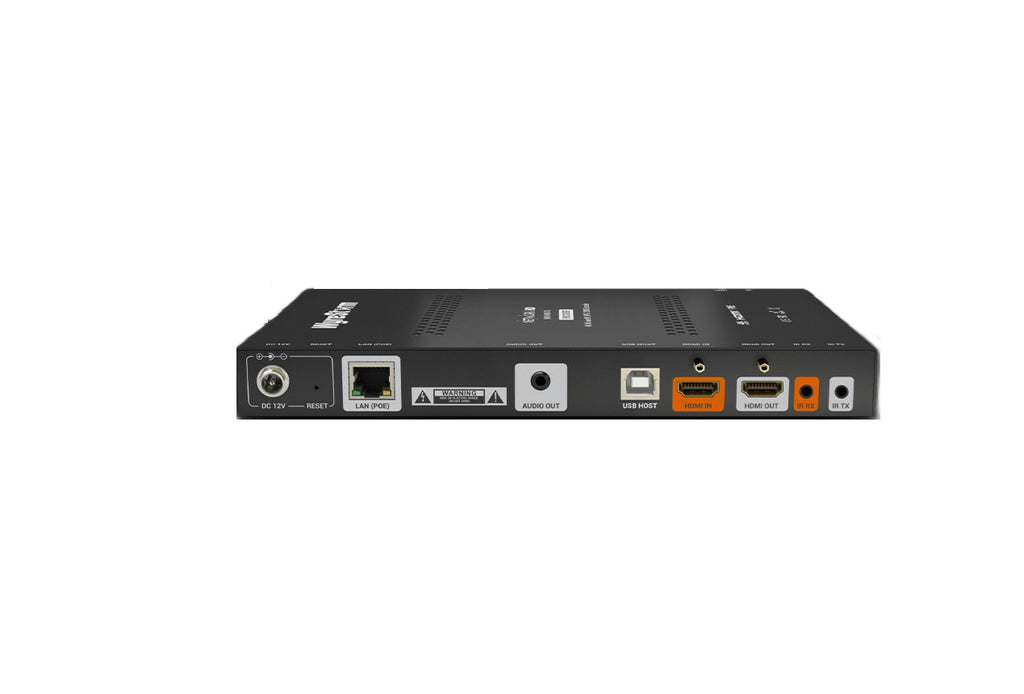

The WyreStorm NHD-400-TX is a 4K HDMI over IP encoder (transmitter) that is part of the NetworkHD 400 Series. It is designed to send visually lossless 4K UHD video, including HDR content, and multi-channel audio over a standard 1 Gigabit Ethernet network with ultra-low latency
Specifications
Model Number: NHD-400-TX
Brand: WyreStorm
Alt Part Number(s): NHD-400-TX
Product Type: Encoder
Technical Description
Brand: WyreStorm
Model: NHD-400-TX
Series: V3 NetworkHD 400-Series
Video Resolution (Max): 1920x1080p
Encoding Data Rate: Max: 850Mbps
Output Video Encoding: JPEG 2000
Audio Formats: 2ch PCM | Multichannel: LPCM and Up to DTS-X and Dolby Atmos
Inputs: 1x HDMI
Outputs: 1x HDMI (Loop Out) 1x Audio Out: 3.5mm (1/8in) TRS Stereo 1x 8-pin RJ-45
Supported Standards: HDR10 | HLG | BT.2020 | BT.709 | 3D Video
Maximum Pixel Clock: 300MHz
HDMI: HDCP 2.2 | CEC
Ethernet: 1x 1GbE 8-pin RJ-45
USB: 1x USB Host: USB Type B | Power: 5v 500ma per port | Data Rate: Max 9MB/s
IR: 1x IR TX: 3.5mm (1/8in) TS Mono Jack | 1x IR RX: 3.5mm (1/8in) TRS Stereo Jack |
RS-232: 1x RS-232: 4-pin Phoenix | 2 Way (RX only)
PoE: IEEE 802.3af (15.4W at PSE)
Max Power Consumption: 8W (with PSU)
Power Supply: 12V DC 1A
*Product descriptions, images, and part numbers are subject to change and may not accurately reflect manufacturer product alterations. For the latest and most precise information, kindly refer to the manufacturer's website and use the item's manufacturer part number.
