- Overview

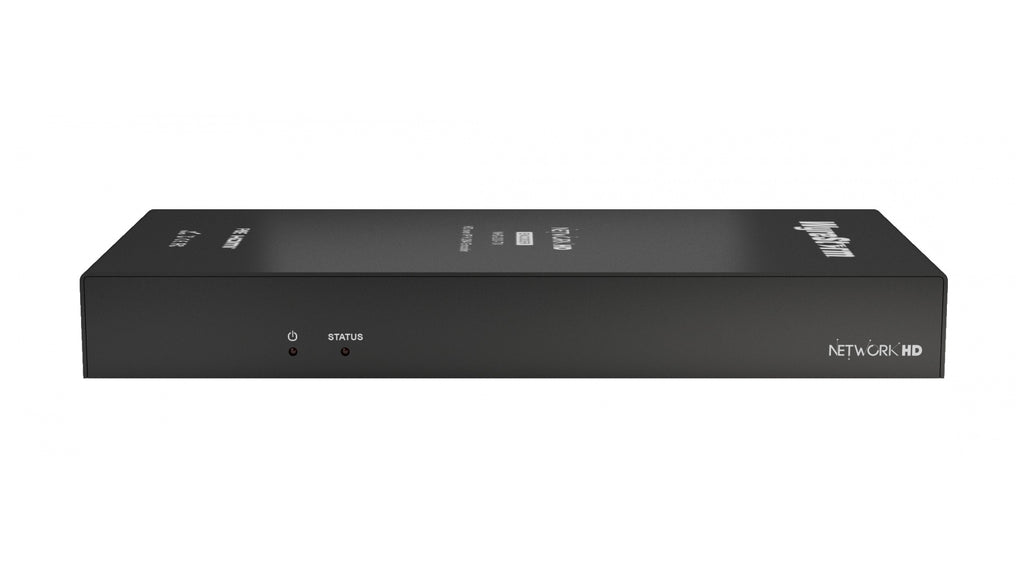

The WyreStorm NetworkHD NHD-200-TX is an H.264 AV over IP encoder that supports multi-format inputs (HDMI, VGA, Component, and DVI) for distribution across a network.
Specifications
Model Number: NHD-200-TX
Brand: Wyrestorm
Alt Part Number(s): NHD-200-TX
Product Type: Encoder
Technical Description
Brand: Wyrestorm
Model: NHD-200-TX
Series: NetworkHD 200
Resolution: 1920 × 1200 @ 60Hz (Full HD/WUXGA)
Codec: H.264 / MPEG-4 AVC
Pixel Clock: up to 150MHz
Encoding Bitrate: up to 30–40 Mbps
Latency: 60–90 ms (low latency mode), 250–300 ms (high quality mode)
Network: 10/100Base-T Ethernet
Video Encoding: H.264/MPEG-4 AVC with a configurable data rate of 2–30 Mb/s
Audio Formats: 2ch PCM
Inputs: 1x 24-pin DVI-I and 1x 3.5 mm TRS Stereo Line In
Outputs: 1x RJ-45 (10/100Base-T with PoE) and 1x 3-pin Phoenix Audio Out
PoE: IEEE 802.3af supported
Standards: HDCP 1.4 compliant
Power Consumption: ~6W
Power supply: 12V DC
Form factor: Compact, rack/wall mountable
