Overview

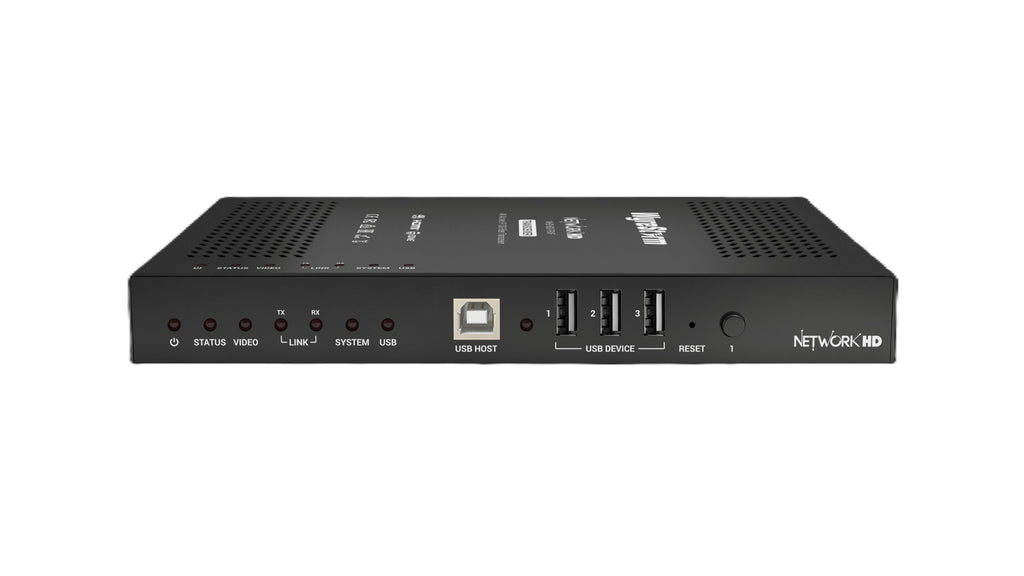

The WyreStorm NHD-600-TRXF is a 4K60 4:4:4 SDVoE fiber optic transceiver from the NetworkHD 600 Series. It is designed for mission-critical A/V over IP applications, such as command centers, medical facilities, and high-end corporate environments, where long-distance, lossless, and zero-latency video distribution is required.
Specifications
Model Number: NHD-600-TRXF
Brand: WyreStorm
Alt Part Number(s): NHD-600-TRXF
Product Type: Transceiver
Technical Description
Brand: WyreStorm
Model: NHD-600-TRXF
Series: NetworkHD 600 Series
Video Resolution (Max): 4096x2160p
Video Encoding/Decoding: SDVoE Pixel Pipeline
Encoding/Decoding: 1080p@60Hz 3.4Gbps 4K UHD@30Hz 4:4:4 8bit 4K UHD@60Hz
Inputs: 1x HDMI 2.0b Input 1x HDMI 2.0b
Outputs: 5-pin 1x10Gb/s SFP+10GBASE-SR: 300m 10km OS1/OS2 single-mode
HDMI: HDCP 2.2, CEC
Ethernet: 1 x 1GbE LAN 8-pin
RS-232: 1x 3-pin Phoenix Connector 2 Way | Broadcast | Routed | API Programmable
IR: 1 x IR TX 3.5mm TS Mono Jack, 1x IR RX 3.5mm TRS Stereo Jack | API Programmable
USB: 3x USB 2.0 Type A, 1x USB 2.0 Type B Host, USB Bandwidth: 480Mbps
Power Supply: 12V 2A DC PSU
Max Power Consumption: Max: 24w, Average: 10w
*Product descriptions, images, and part numbers are subject to change and may not accurately reflect manufacturer product alterations. For the latest and most precise information, kindly refer to the manufacturer's website and use the item's manufacturer part number.
