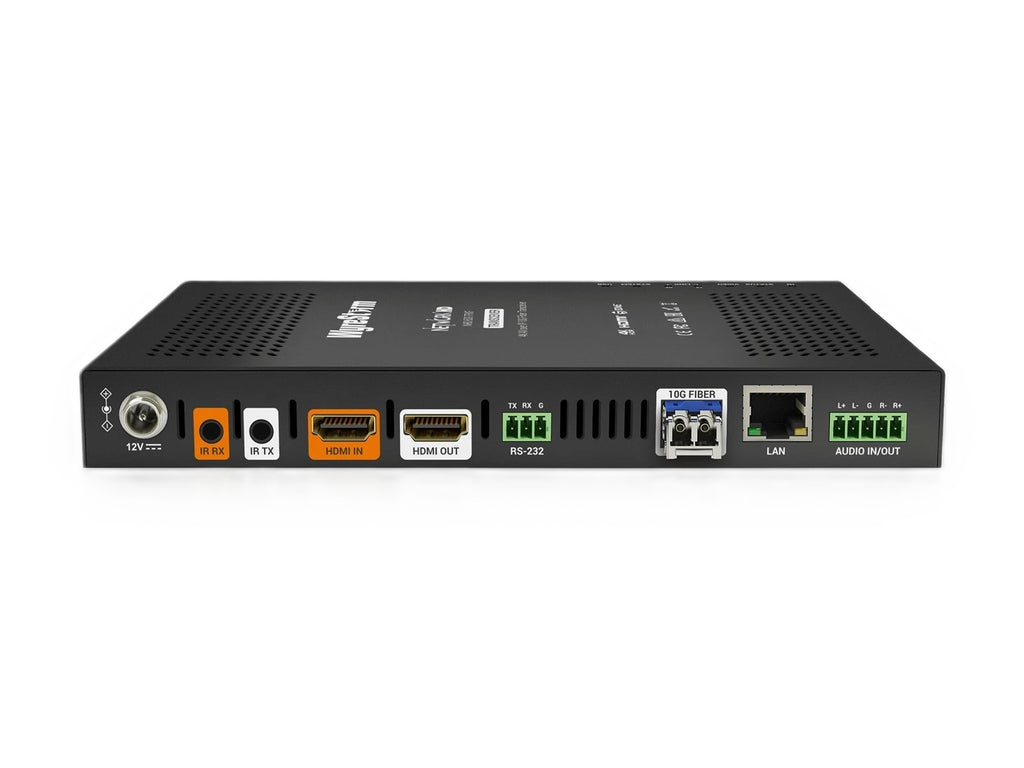

The WyreStorm NHD-600-TRX is a 4K60 4:4:4 10GbE SDVoE transceiver that provides lossless and latency-free audio/video (A/V) transmission over a 10 Gigabit Ethernet network. It can function as both a transmitter and a receiver, or simultaneously transmit and receive A/V through a single device.
Specifications
Model Number: NHD-600-TRX
Brand: WyreStorm
Alt Part Number(s): NHD-600-TRX
Product Type: Transceiver
Technical Description
Brand: WyreStorm
Model: NHD-600-TRX
Series: NetworkHD 600 Series
Video Resolution (Max): 4096x2160p @ 60Hz
Video Encoding/Decoding: SDVoE Pixel Pipeline
Encoding/Decoding Data Rate: 1080p@60Hz 8bit – 3.4Gbps, 4K @30Hz 4:4:4 8bit
Inputs/Outputs: 1x HDMI 2.0b Input, 1x HDMI 2.0b Output, 1x5-pin 1x 10GbE 8-pin RJ45
HDMI: HDCP 2.2, CEC
Ethernet: 1 x 1GbE LAN 8-pin
RS-232: 1x 3-pin Phoenix Connector
IR: 1 x IR TX 3.5mm TS Mono Jack
USB: 3 x USB 1.1 Type A, 1 x USB 1.1 Type B Host
Power Supply: 12V 2A DC PSU
Max Power Consumption: Max: 24w
