- Overview
Overview

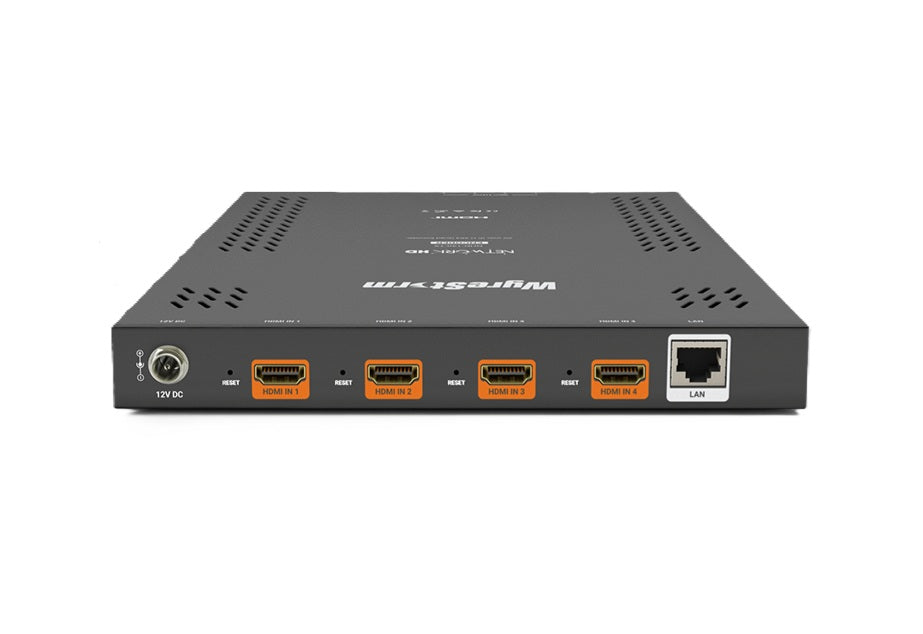

The WyreStorm NHD-140-TX is a quad-input H.264 encoder from the NetworkHD 100 series, designed to transmit up to four 1080p video streams simultaneously over a 1 Gigabit Ethernet network. It is a space-saving device, combining four transmitters into one unit, which can be rack-mounted for high-density installations
Specifications
Model Number: NHD-140-TX
Brand: WyreStorm
Alt Part Number(s): NHD-140-TX
Product Type: Encoder
Technical Description
Brand: WyreStorm
Model: NHD-140-TX
Series: NetworkHD 100 Series
Video Resolution: Resolutions listed are 8Bit RGB. 1920x1080p @24/25/30/50/60Hz
End to End Latency: ~79ms (low latency mode) | ~250ms (high quality mode)
Encoding Data Rate Max: 30Mb/s ?C per stream (120 Mb/s total)
Audio Formats: 2ch LPCM 48KHz
Inputs: 4x HDMI In: 19-pin HDMI Type A
Outputs: 1x LAN: 8-pin RJ-45 (AV Transmission to RX)
Maximum Pixel Clock: 165MHz
HDMI: HDCP 1.4
Ethernet: 1x LAN: 8-pin RJ-45 ANSI/TIA-568 8P8C, 1000Base-T
Power Supply: 12V DC
Max Power Consumption: 19.44W
Height: 1.0"
Width: 8.46"
Depth: 10.24"
*Product descriptions, images, and part numbers are subject to change and may not accurately reflect manufacturer product alterations. For the latest and most precise information, kindly refer to the manufacturer's website and use the item's manufacturer part number.
