Description
Life in a desktop computer doesn't compare to the extreme environment in an always-on, high duty cycle RAID system. What's needed is a drive engineered to thrive in a high-intensity RAID system while still offering traditional low cost-per-capacity desktop value. That drive is the WD Caviar RE. Designed and manufactured to enterprise-class standards, WD Caviar RE drives provide enhanced reliability in a 24x7, continuous duty cycle environment.

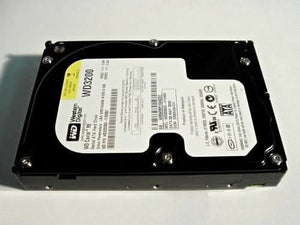

WD3200SD Specifications
Technical Information
- Storage Capacity: 320 GB
- Platform Supported: PC
- Platform Supported: Mac
Drive Performance
- Maximum External Data Transfer Rate: 150 MBps (1.2 Gbps)
- Maximum Internal Data Transfer Rate: 93.5 MBps (748 Mbps)
- Rotational Speed: 7200 rpm
- Buffer: 8 MB
- Average Latency: 4.20 ms
Interfaces/Ports
- Drive Interface: SATA/150
- SATA Pin: 7-pin
Power Description
- Input Voltage: 12 V DC
Physical Characteristics
- Drive Type: Internal
- Drive Width: 3.5"
- Drive Height: 1/3H
- Height: 1.0"
- Width: 4.0"
- Depth: 5.8"
- Weight (Approximate): 1.32 lb
Miscellaneous
-
Additional Information:
Vibration:
- 10-300 Hz, 0.004 g2/Hz Random Operating
- 5-20 Hz, 0.195 inches (double amplitude)Low Frequency Non-operating
