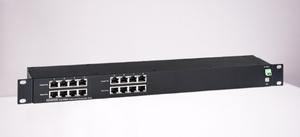

Vigitron Vi2308A 8-Port 10/100BaseT MaxiiCopper High-Speed UTP Ethernet Extender

Overview

Vigitron Vi2308A 8-Port 10/100BaseT MaxiiCopper High-Speed UTP Ethernet Extender.



Specifications

Model Number:  Vi2308A

Brand:  Vigitron

Alt Part Number(s):  Vi2308A

Product Type:  Ethernet Extender



Technical Description

Brand:  Vigitron

Model:  Vi2308A

No. of Port:  8

Ethernet Interface:  Standard 10/100BaseT

Data Rate:  Auto select 10/100 Mb/s Full speed / full duplex at maximum rated distances

UTP:  100 Ohm +/- 20%, Cat5 or better 10BaseT: up to 3,000 ft. (914 m) 100BaseT: up to 2,100 ft. (640 m)

RFC:  2544 TCP/IP Packet Transmission

PoE Compatibility:  IEEE 802.3af, at, bt PoE Standards up to 74W

FCC:  Part 15, Subpart B, Class B 2010

Emissions:  EN 5502:2006+A1:2007, EN 61000-3-2:2006+A1:2009+A2:2009 EN 61000-3-3:2008, EN 55024:1998+A1:2001+A2:2003

Output Voltage:  208 - 230 V AC

Protocols:  Web, SNMP, Telnet



Feature

Extends Ethernet beyond 328 feet (100 m) limitation up to 3,000 feet (914 m) over UTP

Extended Pass-Through PoE (PTP™) compatible with 802.3af, at, bt up to 74W

MegaPixel Certified (MPC™) High data rate, ideal for high bandwidth requirements of MegaPixel cameras, multiple IP cameras systems, and cameras requiring Jumbo Frames

Symmetric Bandwidth (SBW™) provides consistent upload and download with Virtual Zero Packet Loss (VZPL™)

Type tested to RFC-2544 TCP/IP network bandwidth packet transmission standards

Supports one-pair or four-pair UTP wires

Type tested for -40°C to +75°C temperature range under conforming to NEMA-TS2

Complies to major IEEE standards and RFC protocols for UDP, TCP/IP, HTTP/HTTPS
