NVIDIA MCP1600-E003E26 Mellanox 100Gb/s QSFP28 Direct Attach Copper Cable
SPECIAL ORDER ITEM
This product is available for special order and may take longer to ship.
AVAILABILITY & SHIPPING
We source this item directly from the OEM as a special order, which may result in longer lead times. We’ll keep you updated throughout the process.
NEED IT SOONER?
Contact us to explore expedited options or find a comparable in-stock alternative.
SPECIAL ORDER FULFILLMENT
Saitech Inc. sources special orders directly from manufacturers and authorized distributors, including hard-to-find, end-of-life, and build-to-order products. These items may have longer lead times, and our team will keep you informed throughout the process.
- Overview

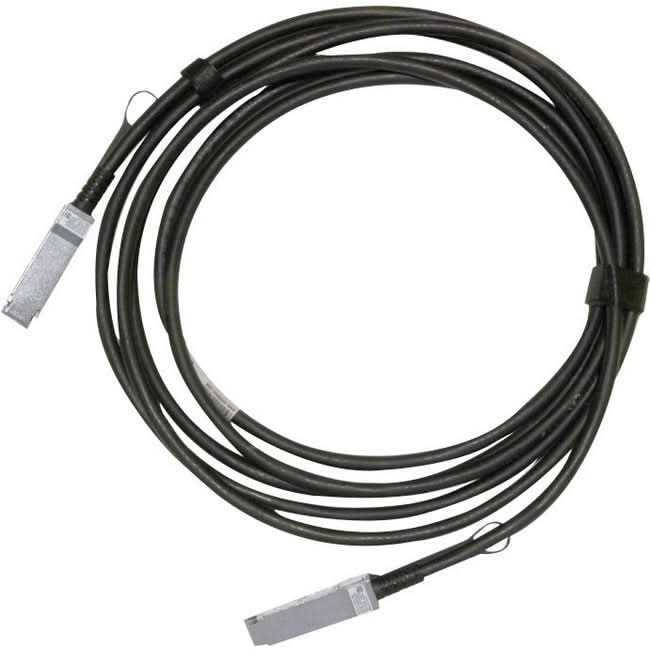

NVIDIA MCP1600-E003E26 Mellanox 100Gb/s QSFP28 Direct Attach Copper Cable
Mellanox® MCP1600-E0xxEy DAC cables are high speed, cost-effective alternatives to fiber optics in InfiniBand 100Gb/s EDR applications.
Mellanox QSFP28 passive copper cables contain four high-speed copper pairs, each operating at data rates of up to 25Gb/s. Each QSFP28 port comprises an EEPROM providing product information, which can be read by the host system.
Mellanox's unique quality passive copper cable solutions provide power-efficient connectivity for short distance interconnects. It enables higher port bandwidth, density and configurability at a low cost and reduced power requirement in the data centers.
Rigorous cable production testing ensures best out-of-the-box installation experience, performance and durability.
- Up to 100Gb/s data rate
- SFF-8665 compliant QSFP28
- Operating case temperature 0-70°C
- Single 3.3V supply voltage
- Bit Error Rate (BER) better than 1E-15 with Mellanox systems
- Hot pluggable
- RoHS compliant
- LSZH (Low Smoke Zero Halogen) jacket
- LF (Lead Free) HF (Halogen Free) PCB
- SFF-8636 compliant I2 C management interface
Product Specification:
| Cable Length: 9.84 ft |
| Product Type: Network Cable |
| Data Transfer Rate: 100 Gbit/s |
| Device Supported: Network Device |
| Jacket Type: LSZH |
| Manufacturer Part Number: MCP1600-E003E26 |
| Manufacturer Website Address: http://www.nvidia.com |
| Limited Warranty: 1 Year |
| Features: Passive,Lead-free,Halogen Free,Bendable |
| Manufacturer: NVIDIA Corporation |
| Product Name: 100Gb/s QSFP28 Direct Attach Copper Cable |
| Product Line: LinkX |
| Brand Name: Mellanox |
| Environmentally Friendly: Yes |
| Cable Type: QSFP28 |
| Connector Type On First End: QSFP28 Network |
| Connector Type On Second End: QSFP28 Network |
| American Wire Gauge: 26 AWG |
| Jacket Material: Low Smoke Zero Halogen |
| Product Color: Black |
| Color Family: Black |
| Connector On First End Details: 1 x QSFP28 Network |
| Connector On Second End Details: 1 x QSFP28 Network |
| Product Material: Copper |
| Environmental Compliance: Restriction of Hazardous Substances (RoHS) |
| Feature1: Up to 100Gb/s data rate |
| Feature2: SFF-8665 compliant QSFP28 |
| Feature3: Operating case temperature 0-70°C |
| Feature4: Single 3.3V supply voltage |
| Feature5: Bit Error Rate (BER) better than 1E-15 with Mellanox systems |
| Feature6: Hot pluggable |
| Feature7: RoHS compliant |
| Feature8: LSZH (Low Smoke Zero Halogen) jacket |
| Feature9: LF (Lead Free) HF (Halogen Free) PCB |
| Feature10: SFF-8636 compliant I2 C management interface |
*
