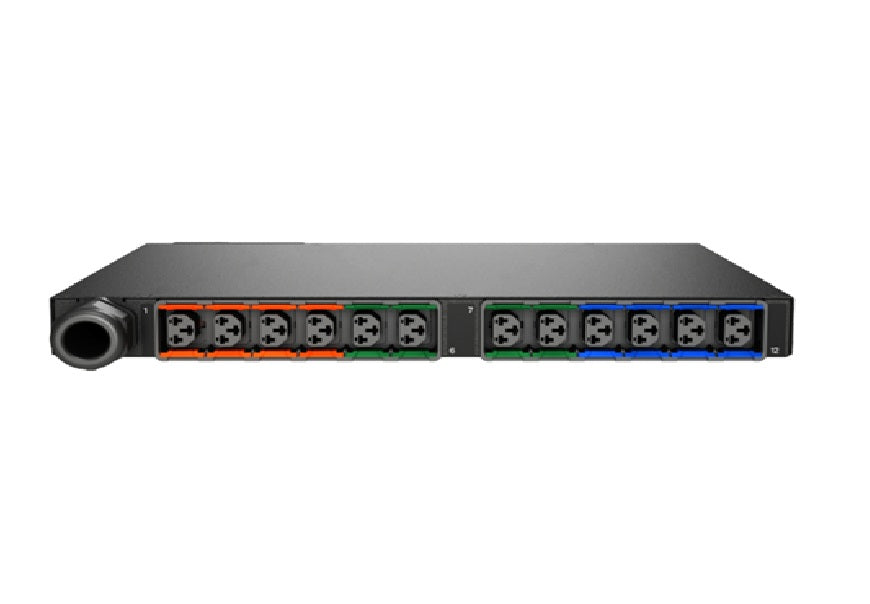

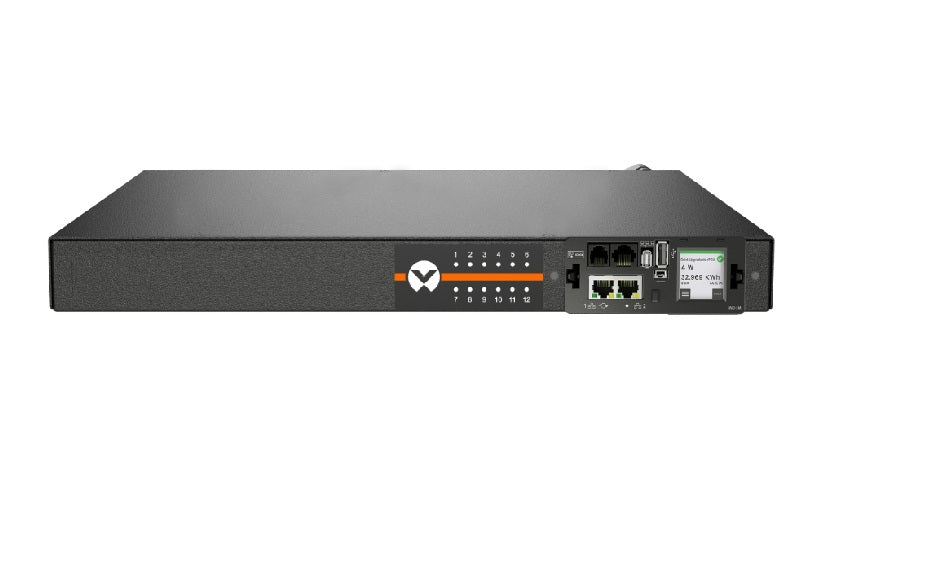

Vertiv rPDU VP5N62A0 12-Outlets 17.2kW 60A Power Distribution Unit
SPECIAL ORDER ITEM
This product is available for special order and may take longer to ship.
AVAILABILITY & SHIPPING
We source this item directly from the OEM as a special order, which may result in longer lead times. We’ll keep you updated throughout the process.
NEED IT SOONER?
Contact us to explore expedited options or find a comparable in-stock alternative.
SPECIAL ORDER FULFILLMENT
Saitech Inc. sources special orders directly from manufacturers and authorized distributors, including hard-to-find, end-of-life, and build-to-order products. These items may have longer lead times, and our team will keep you informed throughout the process.
- Overview
The Vertiv Geist VP5N62A0 is a 2U horizontal, high-density switched rack power distribution unit (rPDU) configured for enterprise data centers. It provides robust power infrastructure coupled with remote network management, offering a power delivery capacity of 17.2 kW.
Specifications
Model Number: VP5N62A0
Brand: Vertiv
Alt Part Number(s): VP5N62A0
Product Type: Power Distribution Unit
Technical Description
Brand: Vertiv
Model: VP5N62A0
Product Series: rPDU
Phase: 3-Phase
Input connectors: IEC 60309 3P+E
Output connectors: 12 × Combination IEC C13/C19
Receptacle Detail: 12 × Combination IEC C13/C19
Total power capacity: 17.2kW
Input Current: 60A
Total Number of Outlets: 12-Outlets
Frequency: 50/60 Hz
Input Voltage: 200–240 VAC
Rack Height: 1U
Output Voltage: 208 VAC
Form Factor: 1U Rackmount
Height: 3.39"
Width: 17"
Depth: 12”
