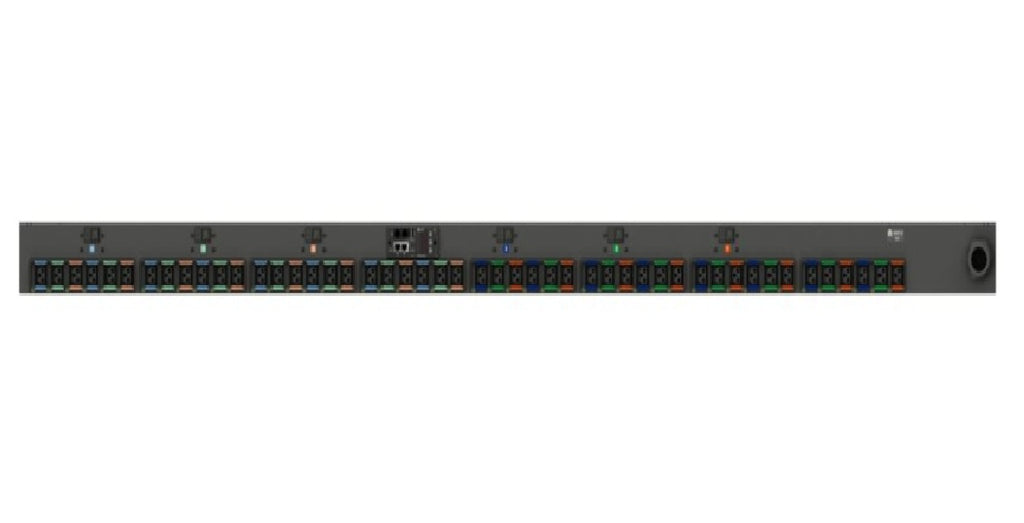

Vertiv rPDU VP5N6005-B 48-Outlets 17.3kW 60A Power Distribution Unit
SPECIAL ORDER ITEM
This product is available for special order and may take longer to ship.
AVAILABILITY & SHIPPING
We source this item directly from the OEM as a special order, which may result in longer lead times. We’ll keep you updated throughout the process.
NEED IT SOONER?
Contact us to explore expedited options or find a comparable in-stock alternative.
SPECIAL ORDER FULFILLMENT
Saitech Inc. sources special orders directly from manufacturers and authorized distributors, including hard-to-find, end-of-life, and build-to-order products. These items may have longer lead times, and our team will keep you informed throughout the process.
- Overview
The Vertiv Geist VP5N6005-B is an industrial-grade, custom 0U vertical intelligent rack power distribution unit (rPDU) engineered for elite three-phase power delivery. Deployed primarily in high-density enterprise data centers, network closets, and advanced compute server rooms, this unit pairs heavy-capacity distribution with advanced remote outlet-level monitoring and control.
Specifications
Model Number: VP5N6005-B
Brand: Vertiv
Alt Part Number(s): VP5N6005-B
Product Type: Power Distribution Unit
Technical Description
Brand: Vertiv
Model: VP5N6005-B
Product Series: rPDU
Phase: 3-Phase
Input connectors: IEC 60309 60 A, 3P+E
Output connectors: 48 × IEC C13/C19 Combination
Receptacle Detail: 36 × IEC C13 + 12 × IEC C19 Combination
Total power capacity: 17.3kW
Input Current: 60A
Total Number of Outlets: 48-Outlets
Input Voltage: 200–240 V AC
Rack Height: 0U
Output Voltage: 208 V AC
Form Factor: 0U Rackmount
Height: 72.0"
Width: 2.0"
Depth: 2.0"
