Vertiv rPDU VP4UV2A1 24-Outlets 22kW 63A Power Distribution Unit
SPECIAL ORDER ITEM
This product is available for special order and may take longer to ship.
AVAILABILITY & SHIPPING
We source this item directly from the OEM as a special order, which may result in longer lead times. We’ll keep you updated throughout the process.
NEED IT SOONER?
Contact us to explore expedited options or find a comparable in-stock alternative.
SPECIAL ORDER FULFILLMENT
Saitech Inc. sources special orders directly from manufacturers and authorized distributors, including hard-to-find, end-of-life, and build-to-order products. These items may have longer lead times, and our team will keep you informed throughout the process.
- Overview

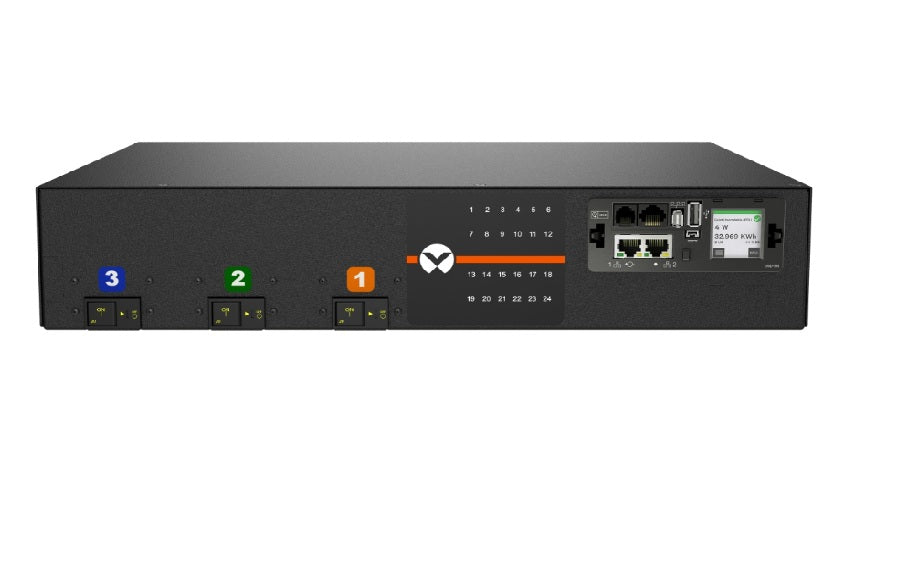

The Vertiv Geist VP4UV2A1 is a high-density, 2U horizontal intelligent Rack Power Distribution Unit (rPDU) designed to handle critical data center loads up to 22.0kW. Part of the Vertiv™ PowerIT series, it features a Universal Input mechanism that allows it to adapt globally to various single-phase or three-phase configurations using detachable Facility Side Cables.
Specifications
Model Number: VP4UV2A1
Brand: Vertiv
Alt Part Number(s): VP4UV2A1
Product Type: Power Distribution Unit
Technical Description
Brand: Vertiv
Model: VP4UV2A1
Product Series: rPDU
Phase: Single Phase/Three Phase
Input connectors: Universal Inlet
Receptacle Type: Combination C13/C19

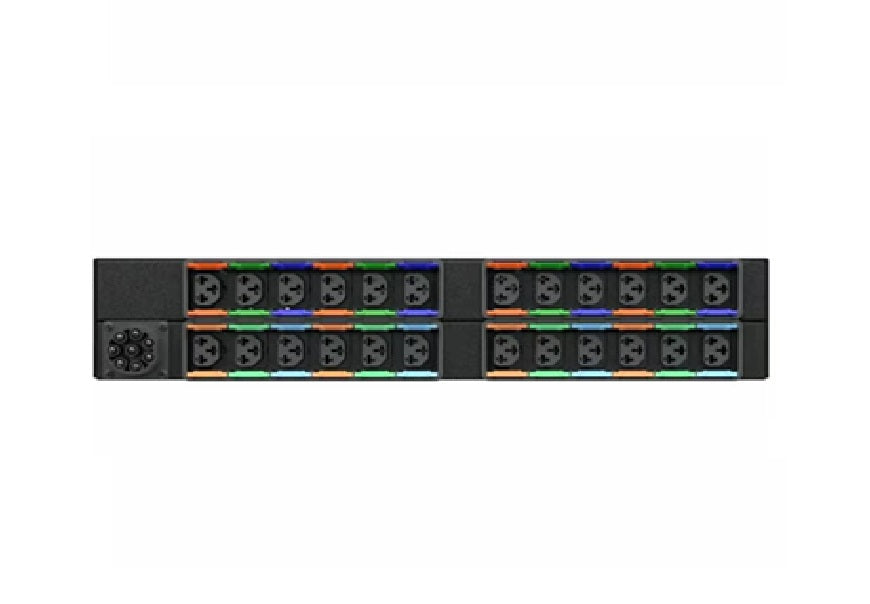

Receptacle Detail: 24 x Combination C13/C19
Total power capacity: 22kW
Input Current: 63A
Total Number of Outlets: 24-Outlets
Input Voltage: 230 V AC/ 415 V AC
Rack Height: 2U
Output Voltage: 200V/ 240V AC
Form Factor: 2U Rackmount
Height: 3.4"
Width: 17"
Depth: 9"
