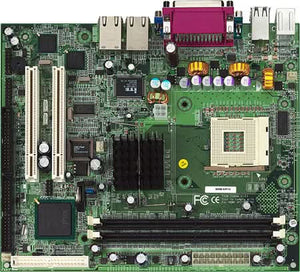

Tyan S3098G2N-RS I845GV Pentium-4/Celeron-D Socket-478 UDMA100 Video LAN FLEX ATX Motherboard

Overview

Embedded, industrial, and space-constrained environments now have the perfect solution: introducing the Tyan Tomcat i845GV (S3098)! Supporting the power of the Intel Pentium 4, Celeron D, and Mobile Pentium 4-M processors, the Tomcat i845GV offers a number of features for numerous applications. Integrated features include support for up to 2GB of DDR333 (PC2700) unbuffered memory, dual 10/100 or Gigabit Ethernet LAN ports, PCI 2.3 compliant slots, a built-in 2D/3D Intel Extreme Graphics core, and a number of hardware monitoring and activity features. With this much capability built into a compact FlexATX (9" x 7.5") form factor, the Tomcat i845GV can offer flexibility to meet customer requirements in nearly any environment.

Specifications

Mfr Part Number:  S3098G2N-RS

Brand:  Tyan

Model Number:  S3098G2N-RS

Type: Motherboard



Technical Description

Brand:  Tyan

Model:  S3098G2N-RS

Chipset Type:  Intel 845GV

Socket Type:  Socket 478

Interfaces:  1X Display / Video-VGA-15 Pin HD D-Sub (Hd-15)

Form Factor:  FlexATX

Networking Type:  Ethernet

Data Bus SPEED:  533MHz

Storage Controllers:  Ata-100

Output Voltage:  208 - 230 V AC

Protocols:  Web, SNMP, Telnet

Width:  9 in

Depth:  7.5 in

*Product descriptions, images, and part numbers are subject to change and may not accurately reflect manufacturer product alterations. For the latest and most precise information, kindly refer to the manufacturer's website and use the item's manufacturer part number.
