Description
Overview

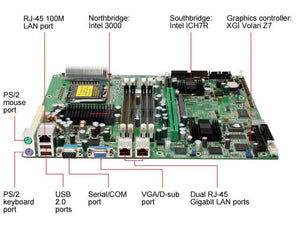

An addition to TYAN's successful line of single processor server boards, the Toledo i3000R (S5191) Server Board is great for 1U rackmount applications. The S5191 also has support for single Intel Xeon processor 3000 series, Pentium 4, Pentium D, Core 2 Duo, Core 2 Extreme and Celeron D processors, as well as integrated dual Gigabit and single 10/100 network port, built-in video, support for DDR2 unbuffered memory, TARO add-on storage cards and remote management options
Prodect Despription
Chipset Manufacturer: Intel
Chipset Model: 3000
Total Processor Supported: 1
Processor Technology: Hyper-Threading Technology
Processor Socket: Socket T LGA-775
Processor Supported: Core 2 Extreme
Processor Supported: Core 2 Duo
Processor Supported: Core 2 Quad
Processor Supported: Pentium Extreme Edition
Processor Supported: Pentium 4
Processor Supported: Pentium D
Processor Supported: Celeron D
Front Side Bus: 533 MHz
Front Side Bus: 800 MHz
Front Side Bus: 1066 MHz
Number of Memory Slots: 4
Maximum Memory: 8 GB
Memory Standard: DDR2-533/PC2-4200
Memory Standard: DDR2-667/PC2-5300
Memory Technology: DDR2 SDRAM
Controller Type: Floppy Controller
Controller Type: Serial ATA/300
Controller Type: Ultra ATA/100 (ATA-6)
Chipset Model: 3000
Total Processor Supported: 1
Processor Technology: Hyper-Threading Technology
Processor Socket: Socket T LGA-775
Processor Supported: Core 2 Extreme
Processor Supported: Core 2 Duo
Processor Supported: Core 2 Quad
Processor Supported: Pentium Extreme Edition
Processor Supported: Pentium 4
Processor Supported: Pentium D
Processor Supported: Celeron D
Front Side Bus: 533 MHz
Front Side Bus: 800 MHz
Front Side Bus: 1066 MHz
Number of Memory Slots: 4
Maximum Memory: 8 GB
Memory Standard: DDR2-533/PC2-4200
Memory Standard: DDR2-667/PC2-5300
Memory Technology: DDR2 SDRAM
Controller Type: Floppy Controller
Controller Type: Serial ATA/300
Controller Type: Ultra ATA/100 (ATA-6)
Onboard Video: On-board Video Chipset
Graphics Controller Manufacturer: XGI
Graphics Controller Model: Volari Z7 (XG20)
Graphics Controller Memory: 32 MB
Fast Ethernet: Yes
Gigabit Ethernet: Yes
Number of Total Expansion Slots: 3
Number of PCI-X Slots: 1
Total Number of PCI Express Slots: 1
Number of PCI Express x4 Slots: 1
Total Number of USB Ports: 2
Number of USB 2.0 Ports: 2
Serial Port: Yes
VGA: Yes
Network (RJ-45): Yes
Number of IDE Interfaces: 1
Number of SATA Interfaces: 4
Total Number of Onboard USB Ports: 2
Onboard LEDs Header: Yes
Width: 12.0"
Depth: 9.6"
Graphics Controller Manufacturer: XGI
Graphics Controller Model: Volari Z7 (XG20)
Graphics Controller Memory: 32 MB
Fast Ethernet: Yes
Gigabit Ethernet: Yes
Number of Total Expansion Slots: 3
Number of PCI-X Slots: 1
Total Number of PCI Express Slots: 1
Number of PCI Express x4 Slots: 1
Total Number of USB Ports: 2
Number of USB 2.0 Ports: 2
Serial Port: Yes
VGA: Yes
Network (RJ-45): Yes
Number of IDE Interfaces: 1
Number of SATA Interfaces: 4
Total Number of Onboard USB Ports: 2
Onboard LEDs Header: Yes
Width: 12.0"
Depth: 9.6"
