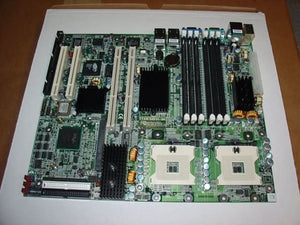

Tyan Tiger Hornet S2735G3NR-8M IE7501 Dual Xeon Socket-604 SATA(Raid) Video LAN ATX Motherboard

Price:
$159.00 Regular price
Price:
Sale price$159.00
TyanSKU: 50964
Model Number: S2735G3NR-8M
Alt. Part Number: S2735-8M, S2735G3NR
Condition: New
In stock:  Yes
No reviews


Description

The Tiger i7501R (S2735) is a flexible server solution with many features. Ideal for the mid-range 1U and 2U rackmount space, this platform is designed with strategic memory slot orientation for optimal air flow, Serial ATA with RAID (0, 1), ATI RAGE XL graphics controller, plus Dual Gigabit ports and a single Fast Ethernet port. With all these offerings combined on an ATX form factor, the Tiger i7501R (S2735) provides excellent value, flexibility in system component options, and incredibly competitive features.

S2735G3NR-8M Specifications

Processor & Chipset

  • Chipset Manufacturer:     Intel
  • Chipset Model:     E7501
  • Total Processor Supported:     2
  • Processor Technology:     Hyper-Threading Technology
  • Processor Socket:     Socket PGA-604
  • Processor Supported:     Xeon
  • Front Side Bus:     400 MHz
  • Front Side Bus:     533 MHz

Memory

  • Number of Memory Slots:     6
  • Maximum Memory:     12 GB
  • Memory Standard:     DDR200/PC1600
  • Memory Standard:     DDR266/PC2100
  • Memory Technology:     DDR SDRAM

I/O Controller

  • Controller Type:     Floppy Controller
  • Controller Type:     Serial ATA/150
  • Controller Type:     Ultra ATA/100 (ATA-6)

Video

  • Onboard Video:     On-board Video Chipset
  • Graphics Controller Manufacturer:     ATI
  • Graphics Controller Model:     Rage-XL
  • Graphics Controller Memory:     8 MB

Network & Communication

  • Fast Ethernet:     Yes
  • Gigabit Ethernet:     Yes

I/O Expansions

  • Number of Total Expansion Slots:     4
  • Number of PCI Slots:     2
  • Number of PCI-X Slots:     2

Interfaces/Ports

  • Total Number of USB Ports:     2
  • Number of USB 2.0 Ports:     2
  • Serial Port:     Yes
  • VGA:     Yes
  • Network (RJ-45):     Yes

Onboard Interfaces

  • Number of IDE Interfaces:     2
  • Number of SATA Interfaces:     2
  • Total Number of Onboard USB Ports:     1
  • Onboard LEDs Header:     Yes

Physical Characteristics

  • Width:     12.0"
  • Depth:     10.0"

Miscellaneous

  • Package Contents:
  • 1 x S2735 Server Board
  • 1 x ATX to SATA Power Converter
  • 2 x Serial ATA Cables
  • 1 x 34-Pin Floppy Drive Cable
  • 1 x Ultra-DMA-100/66/33 IDE Cable
  • 1 x 9-pin Serial Cable
  • 1 x 25-pin Parallel Cable
  • 2 x CPU Retention Modules
  • 2 x CPU Back-Plates with Screws
  • 1 x User's Manual
  • 1 x Quick Reference
  • 1 x Driver CD
  • 1 x I/O Shield
  • Additional Information:

    Chipset:

  • Intel E7501 server chipset, consisting of:
    • Memory Controller Hub (MCH)
    • I/O Controller Hub (ICH5R)
    • PCI-X/PCI Controller (P64H2)
    • Firmware Hub (FWH):

    Operating System Support:

  • Windows 2000 Server
  • Windows 2000 Advanced Server
  • Windows XP Pro
  • Windows NT 4.0 Server + SP6A
  • Windows Server 2003
  • Linux (Kernel 2.4.18) or higher
  • Note: Maximum number of IDE devices supported with any combination of Integrated IDE and SATA IDE is four devices. For example: 2 SATA and 2 P-ATA (total = 4).

Warranty

  • Limited Warranty:     3 Year
