Description

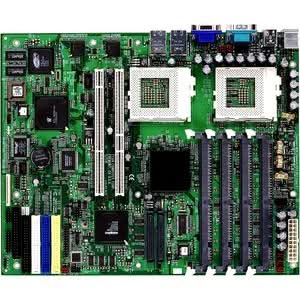

The Thunder LE-T (S2518) Server Board was specifically designed for the Internet infrastructure. It supports two CPUs; either the Pentium III processor, or the Pentium III processor DP. With its high-performance ServerWorks chipset, 64-bit PCI bus, and integrated network, storage and video controllers, the Thunder LE-T provides superior performance and a wealth of integrated features. The Thunder LE-T (S2518) Server Board's most intriguing feature is its form factor. Utilizing angled memory sockets and a highly integrated design, the Thunder LE-T is the perfect choice for today's 1U/2U servers.
- Chipset Manufacturer: Broadcom
- Chipset Model: ServerSet III LE3
- Total Processor Supported: 2
- Processor Socket: Socket PGA-370
- Processor Supported: Pentium III
- Front Side Bus: 133 MHz
- Front Side Bus: 100 MHz
Processor & Chipset
- Number of Memory Slots: 4
- Maximum Memory: 4 GB
- Memory Standard: PC133
- Memory Technology: SDRAM
Memory
- Controller Type: Floppy Controller
- Controller Type: Ultra ATA
I/O Controller
- Onboard Video: On-board Video Chipset
- Graphics Controller Manufacturer: ATI
- Graphics Controller Model: Rage XL
- Graphics Controller Memory: 4 MB
Video
- Fast Ethernet: Yes
Network & Communication
- Number of Total Expansion Slots: 2
- Number of PCI Slots: 2
I/O Expansions
- Total Number of USB Ports: 2
- Serial Port: Yes
- VGA: Yes
- Network (RJ-45): Yes
Interfaces/Ports
- Number of IDE Interfaces: 2
- Total Number of Onboard USB Ports: 2
- Onboard LEDs Header: Yes
Onboard Interfaces
- Width: 12.0"
- Depth: 9.6"
Physical Characteristics
- Package Contents:
- Thunder LE-T (S2518) Server Board
- 1 x 34-Pin floppy drive cable
- 2 x Ultra-DMA-100/66/33 IDE cable
- 1 x 64-bit PCI Riser card
- 1 x Cable set: 9-pin Serial and 25-pin printer cables
- 1 x Thunder LE-T user manual
- 1 x Tyan driver CD
-
Additional Information:
Chipsets:
- Broadcom ServerSet III LE3
- Integrated I/O APIC
- OSB4
- SMsC FDC37B787 Super I/O ASIC
BIOS Features:
- AMI BIOS on 4Mb Flash ROM
- Auto-configuration of IDE hard drive types
- Multiple boot options
- DMI 2.0 compliant
Hardware Monitoring:
- Winbond W83782D hardware monitoring ASIC
- CPU temperature, voltage, and fan monitoring
Miscellaneous
- Limited Warranty: 3 Year
Warranty
