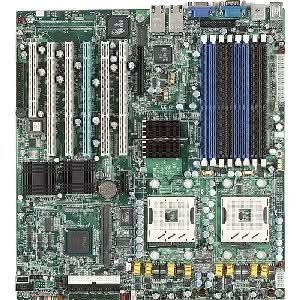

Tyan Thunder I7520 (S5360) S5360G2NR Dual Xeon SKT-604 Video 2Gb LAN E-ATX Motherboard: OEM Bare

$399.00 Regular price
Sale price$399.00
TyanSKU: 51029
Model Number: S5360G2NR
Alt. Part Number: Thunder i7520 (S5360)
Condition: OEM Bulk
In stock:  Yes
No reviews


This item is a Special Order and may take additional shipping time.
Place your order with SAITECH, and we will make every effort to have the item delivered to you as soon as possible.

How We Process Orders
Fastest Shipping: To get your products to you as quickly as possible, most orders placed directly by one of our several leading distributors or by the product's manufacturer. As a result, no one can get your orders to you faster than we can!

Strong Industry Alliances: SAITECH maintains long-standing alliances with the industry's leading distributors and manufacturers. As a result, we are the top source for your computer, office and Server technology needs.

Lowest Possible Prices: Advanced electronic interfaces continually scan our distributors for their best current pricing and availability. While changes in availability between different distributors may result in some price fluctuations, it ensures that you will always receive the lowest possible prices on currently available products!

Realtime Inventory: Live inventory updates are not available for this product.


Flexibility and performance represent the key capabilities of the Tyan Thunder i7520 (S5360). Based on Intel's next generation E7520 server chipset, the Thunder i7520 delivers cutting-edge features such as dual Intel Xeon "Nocona" support with EM64T (64-bit architecture), up to 16 GB of DDR333 Registered ECC memory, multiple PCI-X 133 and 100MHz slots, PCI Express support, and dual PCI-X Gigabit Ethernet ports. Other incredible features include onboard Serial ATA with RAID, active system management functions, remote management option, and storage expansion options through Tyan's TARO SO-DIMM add-on modules.

S5360G2NR Product Overview

    Processor & Chipset

  • Chipset Manufacturer:     Intel
  • Chipset Model:     E7520
  • Total Processor Supported:     2
  • Processor Technology:     Hyper-Threading Technology
  • Processor Socket:     Socket PGA-604
  • Processor Supported:     Xeon
  • Front Side Bus:     800 MHz


  • Number of Memory Slots:     8
  • Maximum Memory:     16 GB
  • Memory Standard:     DDR266/PC2100
  • Memory Standard:     DDR333/PC2700
  • Memory Technology:     DDR SDRAM

    I/O Controller

  • Controller Type:     Ultra ATA/100 (ATA-6)
  • Controller Type:     Floppy Controller
  • Controller Type:     Serial ATA/150


  • Onboard Video:     On-board Video Chipset
  • Graphics Controller Manufacturer:     ATI
  • Graphics Controller Model:     Rage-XL
  • Graphics Controller Memory:     8 MB

    Network & Communication

  • Gigabit Ethernet:     Yes

    I/O Expansions

  • Number of Total Expansion Slots:     6
  • Number of PCI Slots:     1
  • Number of PCI-X Slots:     4
  • Total Number of PCI Express Slots:     1
  • Number of PCI Express x8 Slots:     1


  • Total Number of USB Ports:     2
  • Number of USB 2.0 Ports:     2
  • Serial Port:     Yes
  • VGA:     Yes
  • Network (RJ-45):     Yes

    Onboard Interfaces

  • Number of IDE Interfaces:     2
  • Number of SATA Interfaces:     2
  • Total Number of Onboard USB Ports:     1
  • Onboard LEDs Header:     Yes

    Physical Characteristics

  • Width:     12.0"
  • Depth:     13.0"


  • Package Contents:
  • 1 x S5360 Server Board
  • 1 x 80-pin Ultra-DMA-133/100/66/33 IDE Cable
  • 1 x Serial ATA Driver Diskette
  • 1 x Serial ATA Power Cable
  • 2 x Serial ATA Cables
  • 1 x User's Manual
  • 1 x Quick Reference
  • 1 x Driver CD
  • 1 x I/O Shield
  • Additional Information:


  • Intel E7520 chipset, consisting of:
    • Northbridge: Memory Controller Hub (MCH)
    • Southbridge: I/O Controller Hub (ICH5R)
    • I/O Bridge: 6700PXH

    Operating System Support:

  • Microsoft Windows XP
  • Microsoft Windows 2000 Advanced Server
  • Microsoft Windows Server 2003
  • Microsoft Windows NT4.0
  • RedHat 8.0, 9.0
  • SuSE Server 8.0
  • Expansion Slots:

  • One proprietary 200-pin TARO SO-DIMM connector (on PCI-X bus)


  • Limited Warranty:     3 Year
