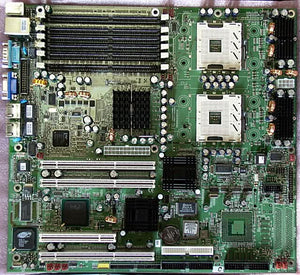

Tyan Thunder i750 Pro S2721GN-533 Dual Xeon MPGA604 Video LAN SSI EEB Server Motherboard

Price:
$159.00 Regular price
Price:
Sale price$159.00
TyanSKU: 52799
Model Number: S2721GN-533
Condition: New Retail
In stock:  Yes
No reviews

SPECIAL ORDER

This item is a Special Order and may take additional shipping time.
Place your order with SAITECH, and we will make every effort to have the item delivered to you as soon as possible.

How We Process Orders
Fastest Shipping: To get your products to you as quickly as possible, most orders placed directly by one of our several leading distributors or by the product's manufacturer. As a result, no one can get your orders to you faster than we can!

Strong Industry Alliances: SAITECH maintains long-standing alliances with the industry's leading distributors and manufacturers. As a result, we are the top source for your computer, office and Server technology needs.

Lowest Possible Prices: Advanced electronic interfaces continually scan our distributors for their best current pricing and availability. While changes in availability between different distributors may result in some price fluctuations, it ensures that you will always receive the lowest possible prices on currently available products!

Realtime Inventory: Live inventory updates are not available for this product.


Description

Utilizing the Intel E7501 chipset, and featuring five independent PCI buses, the Thunder i7501 Pro provides maximum performance for today's server applications. Supporting two Intel Xeon Processors with 533MHz Front Side Bus (FSB), and high-performance DDR RAM, the Thunder i7501 Pro incorporates two P64H2 hubs that support four independent PCI-X channels. The Thunder i7501 Pro also features three network ports, including dual Gigabit Ethernet ports. These features, combined with integrated ATI RAGE XL VGA graphics make this platform the perfect server solution.

S2721GN-533 Specifications

Processor & Chipset

  • Chipset Manufacturer:     Intel
  • Chipset Model:     E7501
  • Total Processor Supported:     2
  • Processor Technology:     Hyper-Threading Technology
  • Processor Socket:     Socket PGA-604
  • Processor Supported:     Xeon
  • Front Side Bus:     400 MHz
  • Front Side Bus:     533 MHz

Memory

  • Number of Memory Slots:     6
  • Maximum Memory:     12 GB
  • Memory Standard:     DDR200/PC1600
  • Memory Standard:     DDR266/PC2100
  • Memory Technology:     DDR SDRAM

I/O Controller

  • Controller Type:     Floppy Controller
  • Controller Type:     Ultra ATA/100 (ATA-6)

Video

  • Onboard Video:     On-board Video Chipset
  • Graphics Controller Manufacturer:     ATI
  • Graphics Controller Model:     Rage-XL
  • Graphics Controller Memory:     8 MB

Network & Communication

  • Fast Ethernet:     Yes
  • Gigabit Ethernet:     Yes

I/O Expansions

  • Number of Total Expansion Slots:     4
  • Number of PCI Slots:     1
  • Number of PCI-X Slots:     3

Interfaces/Ports

  • Total Number of USB Ports:     2
  • Number of USB 1.1 Ports:     2
  • Serial Port:     Yes
  • VGA:     Yes
  • Network (RJ-45):     Yes

Onboard Interfaces

  • Number of IDE Interfaces:     2
  • Total Number of Onboard USB Ports:     2
  • Onboard LEDs Header:     Yes

Physical Characteristics

  • Width:     12.0"
  • Depth:     13.0"

Miscellaneous

  • Package Contents:
  • 1x Thunder i7501 Pro (S2721-533) Server Board
  • 1x 34-Pin floppy drive cable
  • 1x Ultra-DMA-100/66/33 IDE cable
  • 1x Thunder i7501 Pro User's Manual
  • 1x TYAN driver CD
  • 1x I/O shield with 3 LAN ports
  • Additional Information:

    BIOS:

  • AMI BIOS 8.0 on 4Mbit Flash ROM
  • LAN remote boot (PXE) and SMBIOS v2.3
  • BIOS Boot Specification v3.1 (BBS) support
  • Auto configuration of IDE hard drive types

Warranty

  • Limited Warranty:     3 Year
