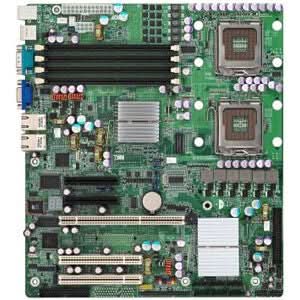

TYAN TEMPEST i5000VF S5370G2NR Intel 5000V Socket- 771 Intel XEON DDR2 677MHZ Motherboard

TyanSKU: 366820
Model Number: S5370G2NR-RS
Condition: New
No reviews

Price:
Sale price$179.00

Description

Form and functionality come together in the server-focused Tempest i5000VF (S5370). Featuring support for Dual Intel Xeon processors 5000/5100 series (Dempsey / Woodcrest) and based on the Intel 5000V chipset, the S5370 also has support for up to (4) FBDIMM modules, dual Gigabit Ethernet ports, PCI Express slots and a PCI-X slot, SATA2 RAID, built-in server power management, optional remote management IPMI 2.0, all in a compact CEB (12" x 10.5") form factor.

S5370G2NR-RS Product Overview

    Processor & Chipset

  • Chipset Manufacturer:     Intel
  • Chipset Model:     5000V
  • Total Processor Supported:     2
  • Processor Technology:     Hyper-Threading Technology
  • Processor Socket:     Socket J LGA-771
  • Processor Supported:     Xeon
  • Front Side Bus:     667 MHz
  • Front Side Bus:     1066 MHz
  • Front Side Bus:     1333 MHz

    Memory

  • Number of Memory Slots:     4
  • Maximum Memory:     16 GB
  • Memory Standard:     DDR2-533/PC2-4200
  • Memory Standard:     DDR2-667/PC2-5300
  • Memory Technology:     DDR2 SDRAM

    I/O Controller

  • Controller Type:     Floppy Controller
  • Controller Type:     Serial ATA/300
  • Controller Type:     Ultra ATA/100 (ATA-6)

    Video

  • Onboard Video:     On-board Video Chipset
  • Graphics Controller Manufacturer:     XGI
  • Graphics Controller Model:     Volari Z7 (XG20)
  • Graphics Controller Memory:     16 MB

    Network & Communication

  • Gigabit Ethernet:     Yes

    I/O Expansions

  • Number of Total Expansion Slots:     7
  • Number of PCI Slots:     2
  • Number of PCI-X Slots:     3
  • Total Number of PCI Express Slots:     2
  • Number of PCI Express x8 Slots:     2

    Interfaces/Ports

  • Total Number of USB Ports:     2
  • Number of USB 2.0 Ports:     2
  • Serial Port:     Yes
  • VGA:     Yes
  • Network (RJ-45):     Yes

    Onboard Interfaces

  • Number of IDE Interfaces:     1
  • Number of SATA Interfaces:     6
  • Total Number of Onboard USB Ports:     3
  • Onboard LEDs Header:     Yes

    Physical Characteristics

  • Width:     12.0"
  • Depth:     10.5"

    Miscellaneous

  • Package Contents:
  • Tempest i5000VF (S5370) Server Board
  • 1x 34-Pin floppy drive cable
  • 1 x Ultra-DMA-133/100/66/33 IDE cable
  • 3 x Serial ATA power cable
  • 6 x Serial ATA Cable
  • 1 x USB2.0 cable
  • 1x Serial Port Cable
  • 1 x S5370 user manual
  • 1 x S5370 Quick Reference guide
  • 1 x TYAN driver CD
  • 1 x I/O shield
  • 2 x CPU Back Plane
  • Additional Information:

    ROHS Compliant

    Chipsets:

  • Intel 5000V chipset
  • Intel 6321ESB I/O Controller Hub
  • SMSC SCH5017 Super I/O chip
  • System Management:

  • Winbond W83793G Hardware Monitor ASIC
  • CPU thermal and voltage monitoring support
  • 2-pin chassis intrusion header
  • 4-pin fan monitoring header
  • BIOS Features:

  • Phoenix BIOS on 8Mbit Flash ROM
  • Serial Console Redirect
  • PXE via Ethernet, USB device boot
  • PnP, DMI 2.0, WfM 2.0 Power Management
  • Auto-configuration of hard disk types
  • Multiple boot options
  • 48-bit LBA support

    Warranty

  • Limited Warranty:     3 Year
