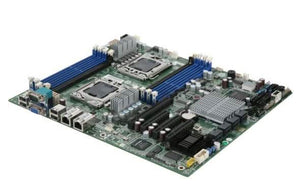

TYAN S7002WGM2NR Intel ICH10R Socket-Dual LGA-1366 Intel XEON 5500 Series DDR3 V L Motherboard
Roll over image to zoom in Click on image to zoom
TYAN S7002WGM2NR Intel ICH10R Socket-Dual LGA-1366 Intel XEON 5500 Series DDR3 V L Motherboard

TYAN S7002WGM2NR Intel ICH10R Socket-Dual LGA-1366 Intel XEON 5500 Series DDR3 V L Motherboard

Price:
$379.00
TyanSKU: 55994
Model Number: S7002WGM2NR
Condition: OEM Bulk
In stock:  Yes
No reviews

Description

Specifications
  • Mfr Part Number: S7002WGM2NR
  • CPU: Dual LGA1366 support Intel Xeon 5500 Series processors, Support upto QPI 6.4 GT/s, TDP Max upto 130W
  • Chipset: Intel 5520 & ICH10R
  • Memory: 8x 240pin DDR3-1333/1066/800 DIMMs, Tripple Channels, REG/Unbuffered, Upto 64GB
  • Slots: 1x PCI-Express 2.0 x16 slots; 2x PCI-Express 2.0 x8 slots; 1x PCI-Express x8 slots
  • SAS: LSI SAS1068E Controller, Support 8 SAS Ports, support RAID 0, 1, 1E
  • SATA: 6x SATA2 Ports support RAID 0, 1, 5 and 10
  • Video: Aspeed AST2050 Graphic Controller
  • LAN: Integrated Dual Intel 82574L Gigabit LAN Controller
  • Server Management: AST2050 IPMI Feature- IPMI 2.0 compliant baseboard management controller (BMC) / Supports storage over IP and remote platform-flash / USB 2.0 virtual hub; AST2050 iKVM Feature - 24-bit high quality video compression / Dual 10/100 Mb/s MAC interfaces
  • Ports: 9x USB 2.0 Ports (4 rear, 4 via cable, 1 type A onboard); 1x VGA Port; 2x Serial Ports(1 rear, 1 by Cable); 2x RJ-45 LAN Ports
  • Form Factor: SSI CEB, 12 x 10.5 inch/ 305 x 267 mm
  • Package: Retail
