Description

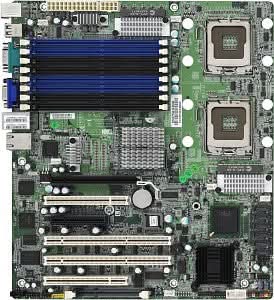

A DP Intel processor-based server platform utilizes the 45nm Xeon processors. This versatile platform features eight DDR2 fully-buffered DIMMs, two 64-bit/133MHz PCI-X, two gen 2 PCI-Ex16, one PCI-E x8 slot (x14 links), and one PCI slots. In addition, it provides two GbE LAN, six SATA2, and eight SAS ports for optional connectivity and features.
| Audio Output | ||||
| Type: | None | |||
|
|
||||
| Cable | ||||
| Connectivity Details Type: | Floppy cable | |||
|
|
|
|||
| Connectivity Details Type: | IDE cable | |||
|
|
|
|||
| Connectivity Details Type: | Serial ATA cable | |||
|
|
|
|||
| Connectivity Details Type: | Serial / parallel cable | |||
|
|
|
|||
| Connectivity Details Type: | USB panel | |||
|
|
|
|||
| Connectivity Details Type: | Serial Attached SCSI cable | |||
|
|
||||
| Header | ||||
| Compatibility: | PC | |||
| Manufacturer: | Tyan | |||
| Model: | S5393WG2NR | |||
| Packaged Quantity: | 1 | |||
| Product Line: | Tyan Tempest i5400PL | |||
|
|
||||
| Interface Provided | ||||
| Qty: | 2 | |||
| Type: | LAN (Gigabit Ethernet) | |||
|
|
|
|||
| Qty: | 1 | |||
| Type: | Management | |||
|
|
|
|||
| Qty: | 4 | |||
| Type: | USB 2.0 | |||
|
|
|
|||
| Type: | Serial | |||
|
|
|
|||
| Type: | VGA | |||
|
|
|
|||
| Type: | PS/2 mouse | |||
|
|
|
|||
| Type: | PS/2 keyboard | |||
|
|
||||
| Mainboard | ||||
| Chipset Type: | Intel 5400A | |||
| Compatible Processors: | Dual-Core Xeon , Dual-Core Xeon 5100 series , Dual-Core Xeon 5200 series , Quad-Core Xeon , Quad-Core Xeon 5300 series | |||
| Data Bus Speed: | 1333 MHz | |||
| Form Factor: | Extended ATX | |||
| I/O Controller: | Intel 6321 ESB | |||
| Multi-Core Support: | Dual-Core / Quad-core | |||
| Power Connectors: | 24-pin main power connector , 8-pin ATX12V connector | |||
| Processor Socket: | LGA771 Socket | |||
| RAM Slots: | 8 FB-DIMM slots | |||
| Supported RAM (Registered or Buffered): | Fully buffered | |||
| Supported RAM Integrity Check: | ECC | |||
| Supported RAM Speed: | 533 MHz , 667 MHz | |||
| Supported RAM Standard: | PC2-4300 , PC2-5300 | |||
| Supported RAM Technology: | DDR2 SDRAM | |||
|
|
||||
| Mainboard Features | ||||
| Additional Connectors (Optional): | 2 x Hi-Speed USB | |||
| BIOS Features: | ACPI 2.0 support , APM 1.2 support , DMI 2.0 support , WfM 2.0 support | |||
| BIOS Type: | Phoenix | |||
| Hardware Features: | Trusted Platform Module (TPM) | |||
| Hardware Monitoring: | CPU core temperature , CPU core voltage | |||
|
|
||||
| Miscellaneous | ||||
| Compliant Standards: | DOC , FCC Class B certified , Plug and Play , RoHS | |||
| Included Accessories: | I/O back plate | |||
| Product Type: | Motherboard | |||
|
|
||||
| Modem | ||||
