Description

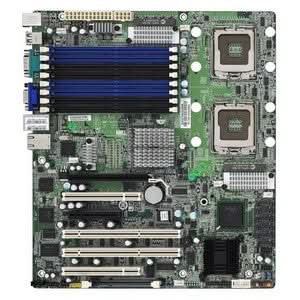

The Tempest i5100X (S5375-1U) Server Board is a flexible Intel platform for multiple applications, based on Intel 5100 MCH and ICH9R chipsets. Designed to support two Intel 5100/5200/5400 Series processors and 32GB DDR2-533/667 DIMM memory, and featured with integrated Dual 82573V LAN controllers, built-in 32MB XGI Z9S video plus six SATA2 ports, the i5100X (S5375-1U) offers exceptional performance and versatile solution for your server/Workstation.
S5375G2NR-1U Product Overview
- Chipset Manufacturer: Intel
- Chipset Model: 5100
- Total Processor Supported: 2
- Processor Technology: Enhanced SpeedStep Technology
- Processor Socket: Socket J LGA-771
- Processor Supported: Xeon
- Front Side Bus: 1066 MHz
- Front Side Bus: 1333 MHz
Processor & Chipset
- Number of Memory Slots: 8
- Maximum Memory: 32 GB
- Memory Standard: DDR2-667/PC2-5300
- Memory Standard: DDR2-533/PC2-4200
- Memory Technology: DDR2 SDRAM
Memory
- Onboard Video: On-board Video Chipset
- Graphics Controller Manufacturer: XGI
- Graphics Controller Model: Z9S
- Graphics Controller Memory: 32 MB
Video
- Gigabit Ethernet: Yes
Network & Communication
- Number of Total Expansion Slots: 2
- Number of PCI Slots: 1
- Total Number of PCI Express Slots: 1
- Number of PCI Express x16 Slots: 1
I/O Expansions
- Total Number of USB Ports: 2
- Number of USB 2.0 Ports: 2
- Serial Port: Yes
- VGA: Yes
- Network (RJ-45): Yes
Interfaces/Ports
- Total Number of Onboard USB Ports: 2
- Onboard LEDs Header: Yes
Onboard Interfaces
- Form Factor: SSI CEB
- Width: 12.0"
- Depth: 10.5"
Physical Characteristics
- Package Contents:
- Tempest i5100X (S5375-1U) Server Board
- 3 x Serial ATA power cable
- 6 x Serial ATA Cable
- 2 x USB2.0 cable
- 1 x Serial Port Cable
- 1 x User manual
- 1 x Quick Reference guide
- 1 x TYAN driver CD
- 1 x I/O shield
- 2 x CPU Back Plane
-
Additional Information:
BIOS:
- AMI on 8Mbit Flash ROM
- Serial Console Redirect
- PXE via Ethernet
- USB device boot
- PnP
- DMI 2.0
- WfM 2.0 Power Management
- User-configurable H/W monitoring
- Auto-configuration of hard disk types
- Multiple boot options
- 48-bit LBA support
Miscellaneous
- Limited Warranty: 3 Year
Warranty
