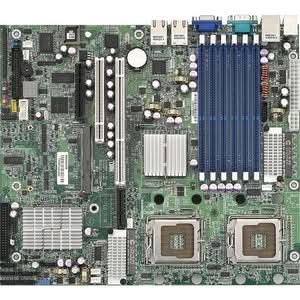

Tyan S5372G3NR Intel 5000V Socket-LGA771 DDR2 Dual Intel Xeon Motherboard
Roll over image to zoom in Click on image to zoom
Tyan S5372G3NR Intel 5000V Socket-LGA771 DDR2 Dual Intel Xeon Motherboard

Tyan S5372G3NR Intel 5000V Socket-LGA771 DDR2 Dual Intel Xeon Motherboard

Price:
$325.00
TyanSKU: 55499
Model Number: S5372G3NR
Condition: OEM Bulk
In stock:  Yes
No reviews

Description

Need a 1U dual processor server with top-notch feature? The Tempest i5000VS (S5372) Server Board offers several incredible features to meet server requirements such as support for dual Intel Xeon processors 5000/5100 series , a 1U-centric layout, multiple expansion slots (PCI-X/PCI-E), support for up to (6) FBDIMM modules, three Ethernet ports, SATA2 RAID, built-in power management and optional remote management IPMI 2.0, and much more. All of this in a compact CEB (12" x 10.5") form factor makes the Tempest i5000VS (S5372) Server Board an excellent choice for any high-density server installation.

S5372G3NR Product Overview

    Processor & Chipset

  • Chipset Manufacturer:     Intel
  • Chipset Model:     5000V
  • Total Processor Supported:     2
  • Processor Technology:     Hyper-Threading Technology
  • Processor Socket:     Socket J LGA-771
  • Processor Supported:     Xeon
  • Front Side Bus:     1066 MHz
  • Front Side Bus:     667 MHz
  • Front Side Bus:     1333 MHz

    Memory

  • Number of Memory Slots:     6
  • Maximum Memory:     12 GB
  • Memory Standard:     DDR2-667/PC2-5300
  • Memory Standard:     DDR2-533/PC2-4200
  • Memory Technology:     DDR2 SDRAM

    I/O Controller

  • Controller Type:     Serial ATA/300
  • Controller Type:     Ultra ATA/100 (ATA-6)
  • Controller Type:     Floppy Controller

    Video

  • Onboard Video:     On-board Video Chipset
  • Graphics Controller Manufacturer:     XGI
  • Graphics Controller Model:     Volari Z7
  • Graphics Controller Memory:     16 MB

    Network & Communication

  • Fast Ethernet:     Yes
  • Gigabit Ethernet:     Yes

    I/O Expansions

  • Number of Total Expansion Slots:     5
  • Number of PCI Slots:     1
  • Number of PCI-X Slots:     1
  • Total Number of PCI Express Slots:     2
  • Number of PCI Express x4 Slots:     1
  • Number of PCI Express x8 Slots:     1

    Interfaces/Ports

  • Total Number of USB Ports:     2
  • Number of USB 2.0 Ports:     2
  • Serial Port:     Yes
  • VGA:     Yes
  • Network (RJ-45):     Yes

    Onboard Interfaces

  • Number of IDE Interfaces:     1
  • Number of SATA Interfaces:     6
  • Total Number of Onboard USB Ports:     1
  • Onboard LEDs Header:     Yes

    Physical Characteristics

  • Width:     12.0"
  • Depth:     10.5"

    Miscellaneous

  • Package Contents:
  • Tempest i5000VS (S5372) Server Board
  • 1x 34-Pin floppy drive cable
  • 1 x Ultra-DMA-133/100/66/33 IDE cable
  • 3 x Serial ATA power cable
  • 6 x Serial ATA Cable
  • 1 x USB2.0 cable
  • 1x Serial Port Cable
  • 1 x S5372 user manual
  • 1 x S5372 Quick Reference guide
  • 1 x TYAN driver CD
  • 1 x I/O shield
  • 2 x CPU Back Plane
  • Additional Information:

    Supports Xeon 5000/5100 series processors

    Chipset:

  • Northbridge: Intel 5000V
  • Southbridge: Intel 6321ESB

    • Hardware Monitoring:

  • SMSC SCH5017, EMC6D103 & Winbond 83793G with hardware monitoring
  • Two (2) 3+1-pin CPU fan headers w/ tachometer monitoring and smart fan speed control
  • Temperature and voltage monitoring
  • Chassis intrusion header
  • IPMB connector for optional Tyan SMDC
  • Watchdog timer support; port 80 code display LED
