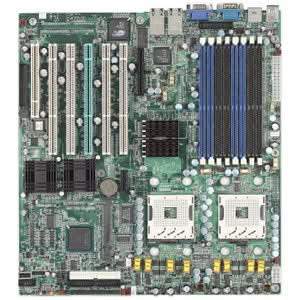

TYAN S5360G2NR-1UR IE7320 Socket-604 Intel XEON EXTENDED ATX Motherboard
SPECIAL ORDER ITEM
This product is available for special order and may take longer to ship.
AVAILABILITY & SHIPPING
We source this item directly from the OEM as a special order, which may result in longer lead times. We’ll keep you updated throughout the process.
NEED IT SOONER?
Contact us to explore expedited options or find a comparable in-stock alternative.
SPECIAL ORDER FULFILLMENT
Saitech Inc. sources special orders directly from manufacturers and authorized distributors, including hard-to-find, end-of-life, and build-to-order products. These items may have longer lead times, and our team will keep you informed throughout the process.
- Overview
Flexibility and performance represent the key capabilities of the Thunder i7520R (S5360-1U) Server Board. Based on Intel's next generation E7520 server chipset, it deliver's cutting-edge features such as dual Intel Xeon 'Nocona' support with EM64T (64-bit architecture), up to 16GB of DDR333 Registered ECC memory, multiple PCI-X 133 and 100MHz slots, PCI Express support, and dual PCI-X Gigabit Ethernet ports. Other incredible features include onboard Serial ATA with RAID, active system management functions, remote management option, and storage expansion options through Tyan's TARO SO-DIMM add-on modules.
- Chipset Manufacturer: Intel
- Chipset Model: E7320
- Total Processor Supported: 2
- Processor Technology: Hyper-Threading Technology
- Processor Socket: Socket PGA-604
- Processor Supported: Xeon
- Front Side Bus: 800 MHz
Processor & Chipset
- Number of Memory Slots: 8
- Maximum Memory: 16 GB
- Memory Technology: DDR SDRAM
Memory
- Controller Type: Floppy Controller
- Controller Type: Serial ATA/150
- Controller Type: Ultra ATA/100 (ATA-6)
I/O Controller
- Onboard Video: On-board Video Chipset
- Graphics Controller Manufacturer: ATI
- Graphics Controller Model: Rage-XL
- Graphics Controller Memory: 16 MB
Video
- Gigabit Ethernet: Yes
Network & Communication
- Number of Total Expansion Slots: 4
- Number of PCI-X Slots: 2
I/O Expansions
- Total Number of USB Ports: 2
- Number of USB 2.0 Ports: 2
- Serial Port: Yes
- VGA: Yes
- Network (RJ-45): Yes
Interfaces/Ports
- Number of IDE Interfaces: 2
- Number of SATA Interfaces: 2
- Total Number of Onboard USB Ports: 4
- Onboard LEDs Header: Yes
Onboard Interfaces
- Width: 12.0"
- Depth: 13.0"
Physical Characteristics
- Package Contents:
- Thunder i7520R (S5360-1U) Server Board
- 1 x 80-pin Ultra-DMA-133/100/66/33 IDE cable
- 1 x User Manual
- 1 x Quick Reference
- 1 x TYAN Driver CD
- 1 x I/O shield
- 1 x Serial ATA driver diskette
- 1 x Serial ATA power cable
- 2 x Serial ATA cables
- Additional Information:
- ROHS Compliant
- Two PCI-X independent buses
- Intel E7320 ('Lindenhurst-VS')
- MCH North Bridge
- ICH5R South Bridge
- One PXH I/O Bridge
- Winbond W83627HF Super I/O
- ADI ADT7463 H/W Monitor IC
- Six 3-pin system fan headers
- Three 4-pin (3-pin compatible) fan connectors
- Tachometer monitoring and PWM control
- One 2-pin chassis intrusion header
- Temperature and voltage monitoring
- Watchdog timer
- Phoenix BIOS 8 Mb flash ROM
- Supports ACPI Power Management: S1, S4 & S5
- Auto detection of memory size
- Auto configuration of IDE hard disk types
- User settings of hardware monitoring
- Multiple boot options including PXE
- Supports console re-direction
Miscellaneous
Chipsets:
System Management:
BIOS Features:
- Limited Warranty: 3 Year
Warranty
