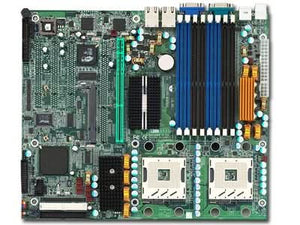

Tyan S5350G2NR-1UR Intel E7230 Socket-604 DDR SDRAM SSI CEB Motherboard

Specifications

Model Number:  S5350G2NR-1UR

Brand:  Tyan

Alt Part Number(s):  S5350G2NR-1UR

Product Type:  Motherboard



Technical Description

Brand:  Tyan

Model:  S5350G2NR-1UR

Chipset:  Intel E7230

CPU Socket:  Socket 604

Video Chipset:  ATI Rage XL

Installed Memory Capacity:  8 MB

Memory Type:  DDR SDRAM

Memory Speed:  266MHz(PC2100)

PCI-X Slot Quantity:  2

Memory Form Factor:  DIMM 184-pin

LAN Chipset:  Broadcom BCM5721

Data Link Protocol Supports:  Gigabit Ethernet

Output Voltage:  208 - 230 V AC

Protocols:  Web, SNMP, Telnet

Form Factor:  SSI CEB

Height:  10.19 In

Width:  12.0 In
