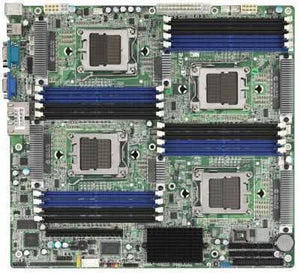

Tyan S4980G2NR Socket-Quad 1207(F) 64GB DDR2-667MHz Extended ATX Motherboard

Specifications

Mfr Part Number:  S4980G2NR

Brand:  Tyan Computers

Model Number:   S4980G2NR

Type:  Motherboard



Technical Description

Brand:  TYAN

Model:  S4980G2NR

Socket Type:  Quad 1207(F)

CPU Type:  Four AMD Opteron (Rev.F) 8000 series

System Bus:  Up to 1.0GHz Hyper-Transport link support

Chipsets:  NVIDIA nForce Professional 3600, SMSC SCH5017

DDR2 Slots:  16 x 240Pin

DDR2 Standard:  DDR2 667

Memory Supported:  64GB

Channel Supported:  Dual Channel

ECC Supported:  Yes

PCI Express x16:  1 x PCI-E x16 slot (2nd slot, 2x controller)

PATA:  1 x ATA 133 2 Dev. Max

SATA:  6 x SATA 3.0Gb/s

SATA RAID:  0/1/0+1/5 JBOD

Video Chipset:  XGI Volari Z7

LAN Chipset:  Marvell 88E1116

LAN Speed:  10/100/1000Mbps

Second LAN Chipset:  Marvell 88E1116

Second LAN Speed:  10/100/1000Mbps

Max LAN Speed:  Dual 10/100/1000Mbps

PS/2:  2

COM:  1

Video Ports:  D-Sub

USB 1.1/2.0:  2 x USB 2.0

Form Factor:  Extended ATX

Dimensions:  12.0" x 13.0"

* Product descriptions and part numbers are subject to change, and may not reflect manufacturer product changes. Please check the manufacturer's website and use the item's manufacturer part number to find the most up to date product description.
