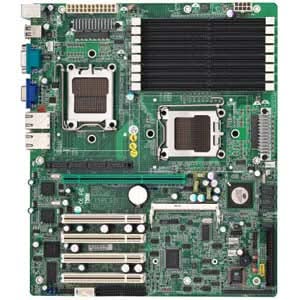

TYAN S3970G2N-U-RS ServerWORKS HT1000 Socket-1207(F) AMD Opteron DDR2 667MHZ Video LAN Motherboard
Roll over image to zoom in Click on image to zoom
TYAN S3970G2N-U-RS ServerWORKS HT1000 Socket-1207(F) AMD Opteron DDR2 667MHZ Video LAN Motherboard

TYAN S3970G2N-U-RS ServerWORKS HT1000 Socket-1207(F) AMD Opteron DDR2 667MHZ Video LAN Motherboard

Price:
$199.00
TyanSKU: 100666
Model Number: S3970G2N-U-RS
Condition: New
In stock:  Yes
No reviews

Description

Compact yet robust, the Tomcat h1000E (S3970-U) offers support for a single AMD Opteron 2000 series processor. The S3970-U also provides other great features like PCI-X and PCI expansion slot support, built-in video, SATA with RAID, IPMI 2.0 remote management option, TARO add-on storage card support, and up to (8) DIMMs of DDR2 Registered memory, all in an ATX form factor.

S3970G2N-U-RS Product Overview

    Processor & Chipset

  • Chipset Manufacturer:     Broadcom
  • Chipset Model:     ServerWorks HT-1000/HT-2000
  • Total Processor Supported:     1
  • Processor Technology:     HyperTransport Technology
  • Processor Socket:     Socket F (1207)
  • Processor Supported:     Opteron

    Memory

  • Number of Memory Slots:     8
  • Maximum Memory:     16 GB
  • Memory Standard:     DDR2-667/PC2-5300
  • Memory Standard:     DDR2-533/PC2-4200
  • Memory Technology:     DDR2 SDRAM

    I/O Controller

  • Controller Type:     Ultra ATA/100 (ATA-6)
  • Controller Type:     Floppy Controller
  • Controller Type:     Serial ATA/150

    Video

  • Onboard Video:     On-board Video Chipset
  • Graphics Controller Manufacturer:     XGI
  • Graphics Controller Model:     Volari Z7 (XG20)
  • Graphics Controller Memory:     16 MB

    Network & Communication

  • Gigabit Ethernet:     Yes

    I/O Expansions

  • Number of Total Expansion Slots:     6
  • Number of PCI Slots:     4
  • Number of PCI-X Slots:     1

    Interfaces/Ports

  • Total Number of USB Ports:     2
  • Number of USB 2.0 Ports:     2
  • Serial Port:     Yes
  • VGA:     Yes
  • Network (RJ-45):     Yes

    Onboard Interfaces

  • Number of IDE Interfaces:     1
  • Number of SATA Interfaces:     4
  • Total Number of Onboard USB Ports:     2
  • Onboard LEDs Header:     Yes

    Physical Characteristics

  • Width:     12.0"
  • Depth:     10.2"

    Miscellaneous

  • Package Contents:
  • Tomcat h1000E (S3970G2N-U) Server Board
  • 1x 34-Pin floppy drive cable
  • 4 x SATA cable
  • 2 x SATA Drive Power Adapter
  • 1 x Ultra-DMA-100/66 IDE cable
  • 1 x USB2.0 cable
  • 1 x COM Port cable
  • 1 x User Manual
  • 1 x Quick Reference Guide
  • 1 x TYAN driver CD
  • 1 x I/O shield
  • Additional Information:

    ROHS Compliant

    Chipsets:

  • Broadcom BCM-5785 (HT1000) core logic
  • SMSC SCH4307 Super I/O

    • BIOS Features:

  • AMI BIOS on 8Mbit LPC Flash ROM
  • Serial console redirect
  • USB boot supported
  • ACPI supported
  • PnP, DMI 2.0, WfM 2.0 Power Management

    • System Management:

  • (2) SMSC EMC6D103 hardware monitoring IC
  • (4) 3+1-pin (with smart FAN control) + (2) 3-pin fan headers support tachometer monitoring
  • Temperature & voltage monitoring
  • Watchdog timer support
  • Chassis intrusion detection

    Warranty

  • Limited Warranty:     3 Year
