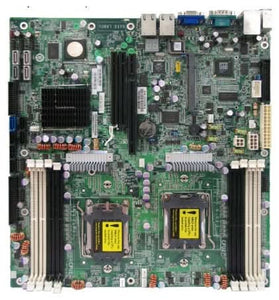

Tyan S2912WG2NR-E NVIDIA nForce Professional 3600 Socket-Dual 1207 DDR2-667MHz Extended-ATX Motherboard

$379.00 Regular price
Sale price$379.00
TyanSKU: 1146010
Model Number: S2912WG2NR-E
Condition: Refurbished
In stock:  Yes
No reviews


This item is a Special Order and may take additional shipping time.
Place your order with SAITECH, and we will make every effort to have the item delivered to you as soon as possible.

How We Process Orders
Fastest Shipping: To get your products to you as quickly as possible, most orders placed directly by one of our several leading distributors or by the product's manufacturer. As a result, no one can get your orders to you faster than we can!

Strong Industry Alliances: SAITECH maintains long-standing alliances with the industry's leading distributors and manufacturers. As a result, we are the top source for your computer, office and Server technology needs.

Lowest Possible Prices: Advanced electronic interfaces continually scan our distributors for their best current pricing and availability. While changes in availability between different distributors may result in some price fluctuations, it ensures that you will always receive the lowest possible prices on currently available products!

Realtime Inventory: Live inventory updates are not available for this product.



Model Number:  S2912WG2NR-E

Brand:  Tyan Computers

Alt Part Number(s):   S2912WG2NR-E

Type:  Motherboard


Technical Description

Brand:  Tyan Computers

Model:  S2912WG2NR-E

CPU Socket Type:  Dual 1207(F)

CPU Type:  Supports up to 2x AMD Opteron Rev.F 2000 series Duel-core / Quad-core processors

System Bus:  1000 MHz

Chipsets:  NVIDIA nForce Professional 3600, Winbond 83627HG Super I/O chip

Analog Devices:  ADT7476 Hardware Monitoring IC

Number of DDR2 Slots:  8 x 240Pin

DDR2 Standard:  DDR2 667

Maximum Memory Supported:  64GB

Channel Supported:  Dual Channel

ECC Supported:  Yes

Registered:  Yes

PCI Express x16:  (1) PCI-E x16 slot (w/ x16 signal), (1) PCI-E x16 slot (w/ x8 signal)

Other Slots:  (1) HTX slot, (1) OPMA connector support M3 OPMA card

PATA:  1 x ATA 133 2 Dev. Max

SATA:  6 x SATA 3.0Gb/s

SATA RAID:  0/1/0+1/5

Onboard Video Chipset:  ATI ES1000

LAN Chipset:  Marvell 88E1121

LAN Speed:  10/100/1000Mbps

Second LAN Chipset:  Marvell 88E1121

Second LAN Speed:  10/100/1000Mbps

Max LAN Speed:  Dual 10/100/1000Mbps

PS/2 Ports:  2

COM Ports:  1

Video Ports:  D-Sub

USB 1.1/2.0:  2 x USB 2.0

Form Factor:  Extended ATX

Dimensions (W x L):  12.0" x 13.0"



LSI 1064E SAS controller with PCI-E x4 interface

Supports (4) SAS/SATA ports

RAID 0, 1 and 1E support


*Product descriptions, images, and part numbers are subject to change and may not accurately reflect manufacturer product alterations. For the latest and most precise information, kindly refer to the manufacturer's website and use the item's manufacturer part number.
