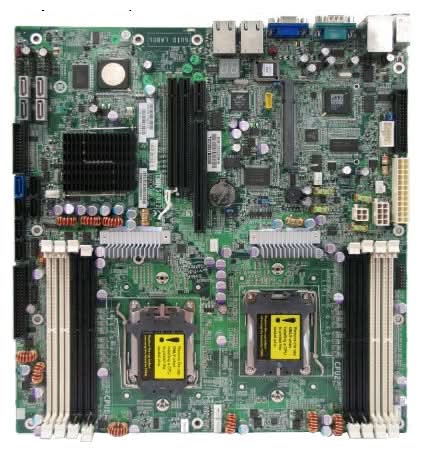

Tyan S2912WG2NR-E Dual AMD Opteron 2000 64GB Extended-ATX Motherboard
SPECIAL ORDER ITEM
This product is available for special order and may take longer to ship.
AVAILABILITY & SHIPPING
We source this item directly from the OEM as a special order, which may result in longer lead times. We’ll keep you updated throughout the process.
NEED IT SOONER?
Contact us to explore expedited options or find a comparable in-stock alternative.
SPECIAL ORDER FULFILLMENT
Saitech Inc. sources special orders directly from manufacturers and authorized distributors, including hard-to-find, end-of-life, and build-to-order products. These items may have longer lead times, and our team will keep you informed throughout the process.
- Overview
Specifications
Model Number: S2912WG2NR-E
Brand: Tyan
Alt Part Number(s): S2912WG2NR-E
Product Type: Motherboard
Technical Description
Brand: Tyan
Model: S2912WG2NR-E
Series: 2000
Processor Core: Duel-core/Quad-core
CPU Socket Type: Socket F/LGA 1207
CPU Type: Supports up to 2x AMD Opteron processors
System Bus: 1000MHz
Chipsets: NVIDIA nForce Professional 3600
Analog Devices: ADT7476 Hardware Monitoring IC
Memory Slots: 8 DIMM slots
DDR2 Standard: DDR2 667
Maximum Memory Supported: 64GB
Channel Supported: Dual Channel
PCI Express x16: (1) PCI-E x16 slot (w/ x16 signal), (1) PCI-E x16 slot (w/ x8 signal)
Other Slots: (1) HTX slot, (1) OPMA connector support M3 OPMA card
PATA: 1 x ATA 133 2 Dev. Max
SATA: 6 x SATA 3.0Gb/s
SATA RAID: 0/1/0+1/5
Onboard Video Chipset: ATI ES1000
LAN Chipset: Marvell 88E1121
LAN Speed: 10/100/1000Mbps
Second LAN Chipset: Marvell 88E1121
PS/2 Ports: 2
COM Ports: 1
Video Ports: D-Sub
USB 1.1/2.0: 2 x USB 2.0
Form Factor: Extended ATX
*
