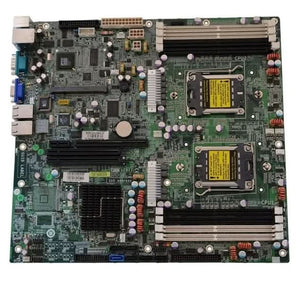

Tyan S2912G2NR Thunder n3600R NVIDIA nForce Professional 3600 Socket-F Extended-ATX Motherboard

Specifications

Model Number:  S2912G2NR

Brand:  Tyan

Alt Part Number(s):  S2912G2NR

Product Type:  Motherboard



Technical Description

Brand:  Tyan

Model:  S2912G2NR

Chipset Type:  NVIDIA nForce Professional 3600

Processor Socket:  Socket F

Max RAM Size:  32 GB

RAM Technology:  DDR2

Bus Clock:  667 MHz, 533 MHz, 400 MHz

Speed:  PC2-5300, PC2-4300, PC2-3200

Compatible Processors:  Opteron 2000 Series

Graphics Controller:  ATI ES1000

Storage:  ATA-133, Serial ATA-300 (RAID)

Dedicated Video Memory:  32 MB DDR SDRAM

Expansion Slots:  2 x CPU 8 x DIMM 240-pin 1 x PCIe x16 1 x PCIe x16 1 x HTX

Interfaces:   1 x PS/2 keyboard 1 x PS/2 mouse 1 x serial 1 x VGA 2 x USB 2.0 2 x LAN (Gigabit Ethernet) 1 x peripheral - RJ-45

Power Connectors:  24-pin main power connector, 8-pin ATX12V connector, 4-pin auxiliary power connector

Output Voltage:  208 - 230 V AC

Protocols:  Web, SNMP, Telnet

Form Factor:  extended ATX

Width:  12 in

Depth:  13 in
