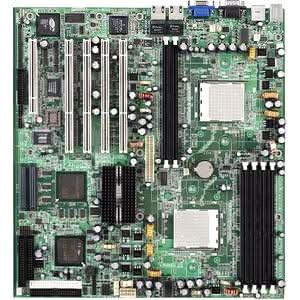

Tyan S2880UGNR AMD 8131 Socket-Dual 940 Dual AMD Opteron DDR V L Motherboard
Roll over image to zoom in Click on image to zoom
Tyan S2880UGNR AMD 8131 Socket-Dual 940 Dual AMD Opteron DDR V L Motherboard

Tyan S2880UGNR AMD 8131 Socket-Dual 940 Dual AMD Opteron DDR V L Motherboard

Price:
$149.00
TyanSKU: 54714
Model Number: S2880UGNR
Condition: Refurbished
In stock:  Yes
No reviews

Description

Thunder K8S (S2880) S2880UGNR Server Board offers the best solution for rackmount and pedestal servers. The Thunder K8S (S2880) features a high bandwidth integrated memory controller for superior productivity through HyperTransport chipset technology to increase overall performance by removing or reducing I/O bottlenecks.

S2880UGNR Product Overview

    Processor & Chipset

  • Chipset Manufacturer:     AMD
  • Chipset Model:     8131
  • Total Processor Supported:     2
  • Processor Technology:     HyperTransport Technology
  • Processor Socket:     Socket PGA-940
  • Processor Supported:     Opteron
  • 64-bit Processing:     Yes

    Memory

  • Number of Memory Slots:     6
  • Maximum Memory:     12 GB
  • Memory Standard:     DDR400/PC3200
  • Memory Standard:     DDR333/PC2700
  • Memory Standard:     DDR266/PC2100
  • Memory Standard:     DDR200/PC1600
  • Memory Technology:     DDR SDRAM

    I/O Controller

  • Controller Type:     Floppy Controller
  • Controller Type:     Serial ATA/150
  • Controller Type:     Ultra ATA/133 (ATA-7)
  • RAID Supported:     Yes
  • RAID Levels:     1
  • RAID Levels:     0
  • RAID Levels:     0+1

    Video

  • Onboard Video:     On-board Video Chipset
  • Graphics Controller Manufacturer:     ATI
  • Graphics Controller Model:     RAGE XL
  • Graphics Controller Memory:     8 MB

    Network & Communication

  • Gigabit Ethernet:     Yes

    I/O Expansions

  • Number of Total Expansion Slots:     8
  • Number of PCI Slots:     1
  • Number of PCI-X Slots:     6

    Interfaces/Ports

  • Total Number of USB Ports:     2
  • Number of USB 1.1 Ports:     2
  • Serial Port:     Yes
  • VGA:     Yes
  • Network (RJ-45):     Yes
  • PS/2 Port:     Yes
  • Number of PS/2 Ports:     2

    Onboard Interfaces

  • Number of IDE Interfaces:     2
  • Number of SATA Interfaces:     2
  • Total Number of Onboard USB Ports:     2
  • Onboard LEDs Header:     Yes

    Physical Characteristics

  • Form Factor:     Extended ATX
  • Width:     13.0"
  • Depth:     12.0"

    Miscellaneous

  • Package Contents:
  • Thunder K8S (S2880) S2880UGNR Server Board
  • 1 x 34-Pin floppy drive cable
  • 1 x LCD SCSI Cable
  • 2 x SATA Cables
  • 1 x SATA Drive Power Adapter
  • 1 x Cable Set 9-pin Serial and 25-pin Parallel
  • 1 x User manual
  • 1 x Reference guide
  • 1 x Driver CD
  • 1 x LSI SCSI Driver Diskette
  • 1 x Promise SATA driver disk
  • 1 x I/O shield with 2 LAN ports
