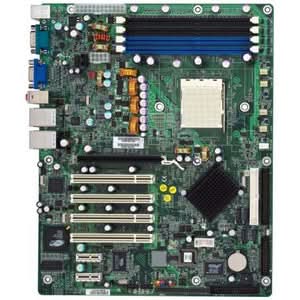

TYAN S2865G2NR Nvidia Nforce4 Core-Logic Socket-939 AMD Opteron DDR 400MHZ V L Motherboard
SPECIAL ORDER ITEM
This product is available for special order and may take longer to ship.
AVAILABILITY & SHIPPING
We source this item directly from the OEM as a special order, which may result in longer lead times. We’ll keep you updated throughout the process.
NEED IT SOONER?
Contact us to explore expedited options or find a comparable in-stock alternative.
SPECIAL ORDER FULFILLMENT
Saitech Inc. sources special orders directly from manufacturers and authorized distributors, including hard-to-find, end-of-life, and build-to-order products. These items may have longer lead times, and our team will keep you informed throughout the process.
- Overview
What has the power of AMD64 core technology, the performance of the NVIDIA nForce 4 chipset, and features for the server and desktop space? The Tomcat K8E (S2865) Desktop Board offers customers the flexibility to meet numerous application requirements. Features of the Tomcat K8E include support for the AMD Opteron 100 series (939-pin socket) processor, support for up to 4GB of DDR400/333 unbuffered memory, PCI Express x16 and dual x1 slots, integrated dual Gigabit Ethernet LAN, built-in multi-channel audio, SATA-II NVRAID and much more. In addition, Tomcat K8E-based systems will deliver higher performance-per-watt and better acoustic levels thanks to PowerNow! technology (with the AMD Opteron. With all of this, plus scalability for 32-bit and 64-bit applications, the Tomcat K8E presents a compelling solution for any number of customer requirements.
- Chipset Manufacturer: NVIDIA
- Total Processor Supported: 1
- Processor Technology: HyperTransport Technology
- Processor Socket: Socket PGA-939
- Processor Supported: Opteron
- Processor Supported: Athlon 64
- Processor Supported: Athlon 64 FX
- Processor Supported: Athlon 64 X2
Processor & Chipset
- Number of Memory Slots: 4
- Maximum Memory: 4 GB
- Memory Standard: DDR333/PC2700
- Memory Standard: DDR400/PC3200
- Memory Technology: DDR SDRAM
Memory
- Controller Type: Floppy Controller
- Controller Type: Serial ATA/300
- Controller Type: Ultra ATA/133 (ATA-7)
I/O Controller
- Onboard Video: On-board Video Chipset
- Graphics Controller Manufacturer: ATI
- Graphics Controller Model: Rage-XL
- Graphics Controller Memory: 8 MB
Video
- Gigabit Ethernet: Yes
Network & Communication
- Number of Total Expansion Slots: 7
- Number of PCI Slots: 4
- Total Number of PCI Express Slots: 3
- Number of PCI Express x1 Slots: 2
- Number of PCI Express x16 Slots: 1
I/O Expansions
- Total Number of USB Ports: 4
- Number of USB 2.0 Ports: 4
- Parallel Port: Yes
- Serial Port: Yes
- VGA: Yes
- Network (RJ-45): Yes
Interfaces/Ports
- Number of IDE Interfaces: 2
- Number of SATA Interfaces: 4
- Total Number of Onboard USB Ports: 2
- Onboard LEDs Header: Yes
Onboard Interfaces
- Width: 12.0"
- Depth: 9.6"
Physical Characteristics
-
Package Contents:
- Tomcat K8E (S2865) Desktop Board
- 1x 34-Pin floppy drive cable
- 4 x SATA cable
- 2 x SATA Drive Power Adapter
- 2 x Ultra-DMA-100/66 IDE cable
- 1 x USB2.0 cable
- 1 x Tomcat K8E user manual
- 1 x Tomcat K8E Quick Reference guide
- 1 x TYAN driver CD
- 1 x I/O shield
- 1 x NV RAID driver diskette
- SMDC (IPMI)
-
Additional Information:
Chipsets:
- nVIDIA nForce4 core-logic
- SMSC DME1737
System Management:
- SMSC DME1737 w/ hardware monitoring
- One 4-pin CPU fan with auto fan control
- Four 4-pin system fan headers (three with tachometer input and four with auto fan control)
- One 3-pin chassis fan connecrtor.
- Temperature and voltage monitoring
- Watchdog timer
BIOS Features:
- Award BIOS 8Mbit Flash
- Supports APM 1.2 & ACPI 1.0
- PnP, DMI2.0, WfM2.0 Power Management
Supported Operating Systems:
- Microsoft Windows 2000
- Microsoft Windows XP (32-bit)
- Microsoft Windows XP (64-bit)
- Microsoft Windows Server 2003 (32-bit)
- Microsoft Windows Server 2003 (64-bit)
- SuSE Professional 9.x
- SuSE Enterprise Server 9.0
- RHEL3.0 Update 4
Miscellaneous
- Limited Warranty: 3 Year
