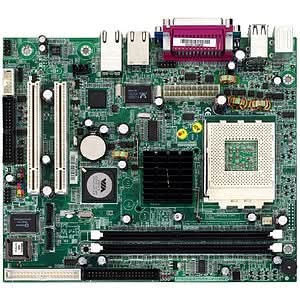

Tyan S2498AGNN VIA KN400A/VT8237A Socket A(462) Audio Video USB 2.0/Gb LAN SATA FLEX ATX Motherboard
SPECIAL ORDER ITEM
This product is available for special order and may take longer to ship.
AVAILABILITY & SHIPPING
We source this item directly from the OEM as a special order, which may result in longer lead times. We’ll keep you updated throughout the process.
NEED IT SOONER?
Contact us to explore expedited options or find a comparable in-stock alternative.
SPECIAL ORDER FULFILLMENT
Saitech Inc. sources special orders directly from manufacturers and authorized distributors, including hard-to-find, end-of-life, and build-to-order products. These items may have longer lead times, and our team will keep you informed throughout the process.
- Overview
Need a compact, power-efficient platform? The Tomcat K7M (S2498) Desktop Board offers all of this and more! Powered by the AMD Geode NX processor, and using the capabilities of the VIA KN400A chipset, the Tomcat K7M also implements a compact FlexATX form factor, a power-optimized design, Gigabit connection options, built-in audio, integrated graphics, and multiple hardware monitoring features. All of this provides customers with an incredible solution for embedded systems and applications.
- Chipset Manufacturer: VIA
- Chipset Model: KN400A
- Total Processor Supported: 1
- Processor Socket: Socket A PGA-462
- Processor Supported: Geode NX
- Front Side Bus: 133 MHz
Processor & Chipset
- Number of Memory Slots: 2
- Maximum Memory: 2 GB
- Memory Standard: DDR266/PC2100
- Memory Standard: DDR333/PC2700
- Memory Technology: DDR SDRAM
Memory
- Controller Type: Ultra ATA/100 (ATA-6)
- Controller Type: Floppy Controller
- Controller Type: Serial ATA/150
I/O Controller
- Onboard Video: On-board Video Chipset
- Graphics Controller Manufacturer: S3
- Graphics Controller Model: UniChrome
- Graphics Controller Memory: 64 MB
Video
- Sound Controller Manufacturer: Analog Devices
- Sound Controller Model: 1981B
- Audio Channels: 5.1
Audio
- Fast Ethernet: Yes
- Gigabit Ethernet: Yes
Network & Communication
- Number of Total Expansion Slots: 2
- Number of PCI Slots: 2
I/O Expansions
- Total Number of USB Ports: 4
- Number of USB 2.0 Ports: 4
- Parallel Port: Yes
- Serial Port: Yes
- VGA: Yes
- Network (RJ-45): Yes
Interfaces/Ports
- Number of IDE Interfaces: 2
- Number of SATA Interfaces: 2
- Onboard LEDs Header: Yes
- Onboard S/PDIF Header: Yes
Onboard Interfaces
- Width: 9.0"
- Depth: 7.5"
Physical Characteristics
-
Additional Information:
Chipset:
- Northbridge: VIA KN400A
- Southbridge: VIA VT8237
Miscellaneous
- Limited Warranty: 3 Year
Warranty
