Description
Overview

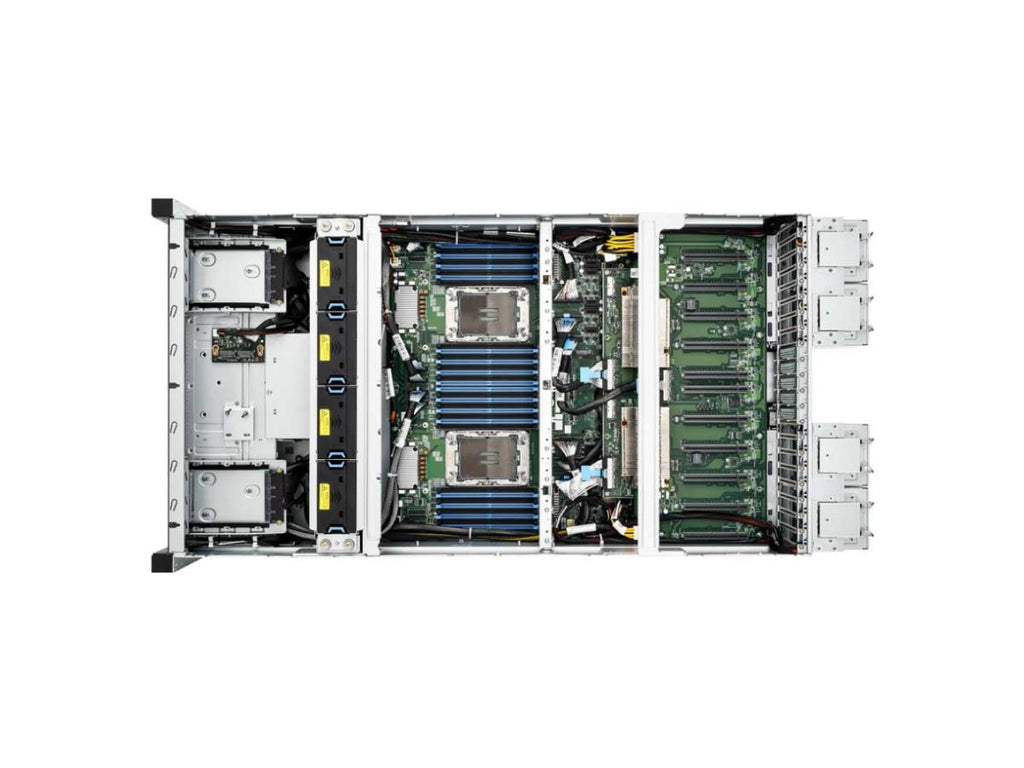

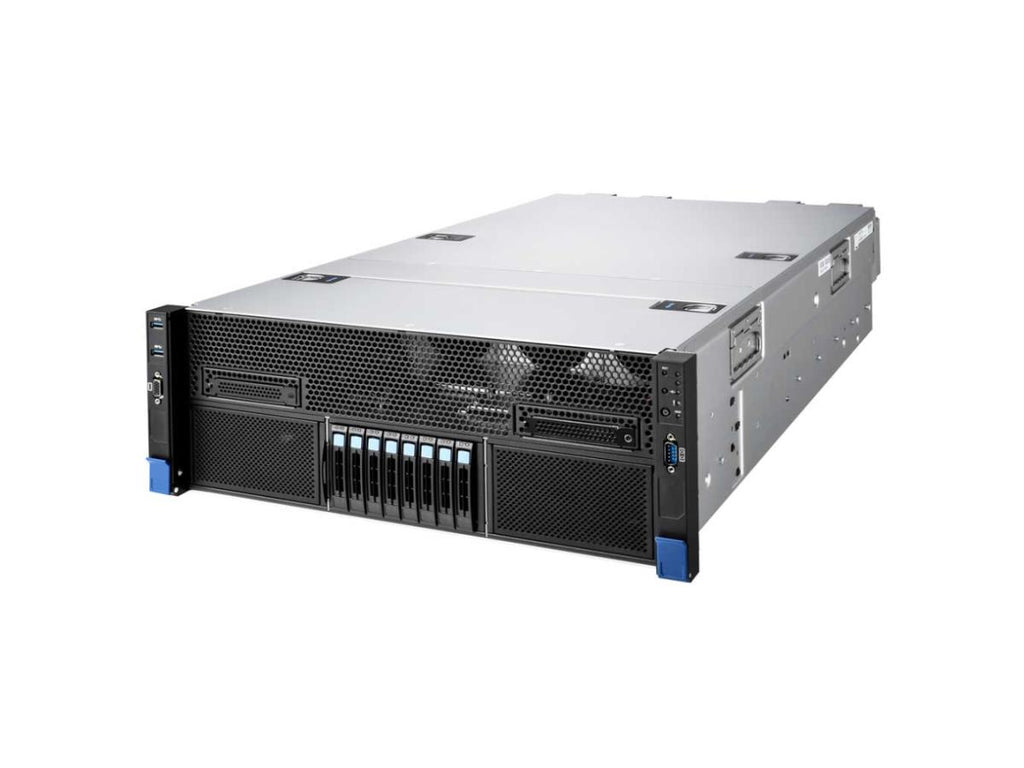

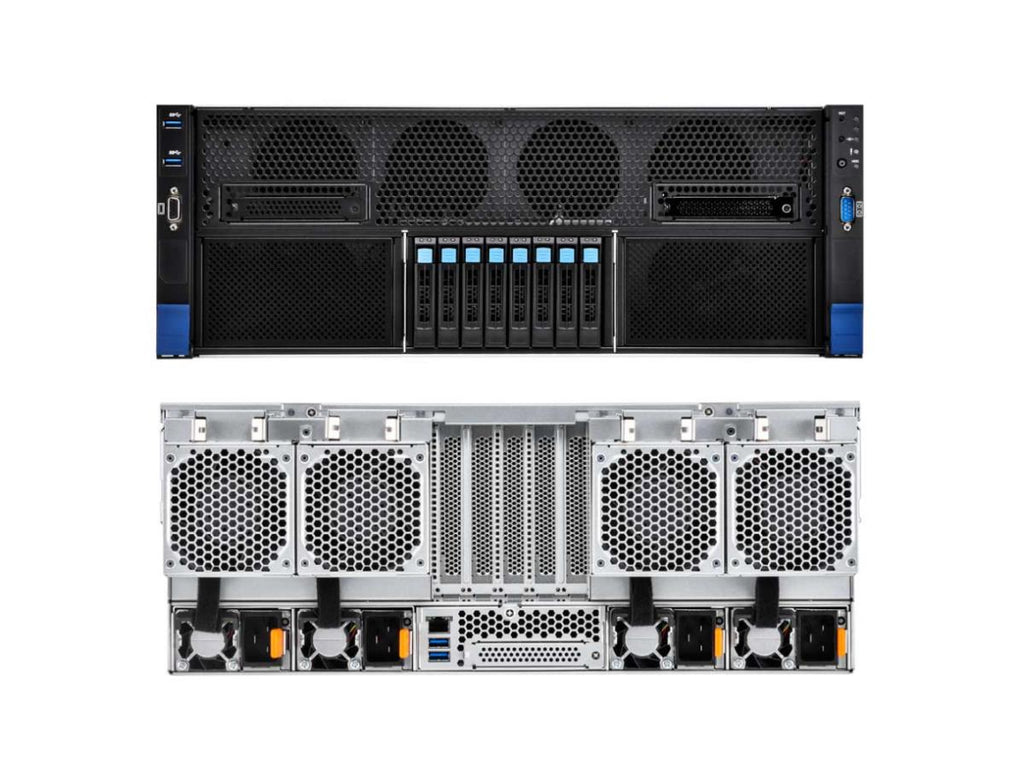

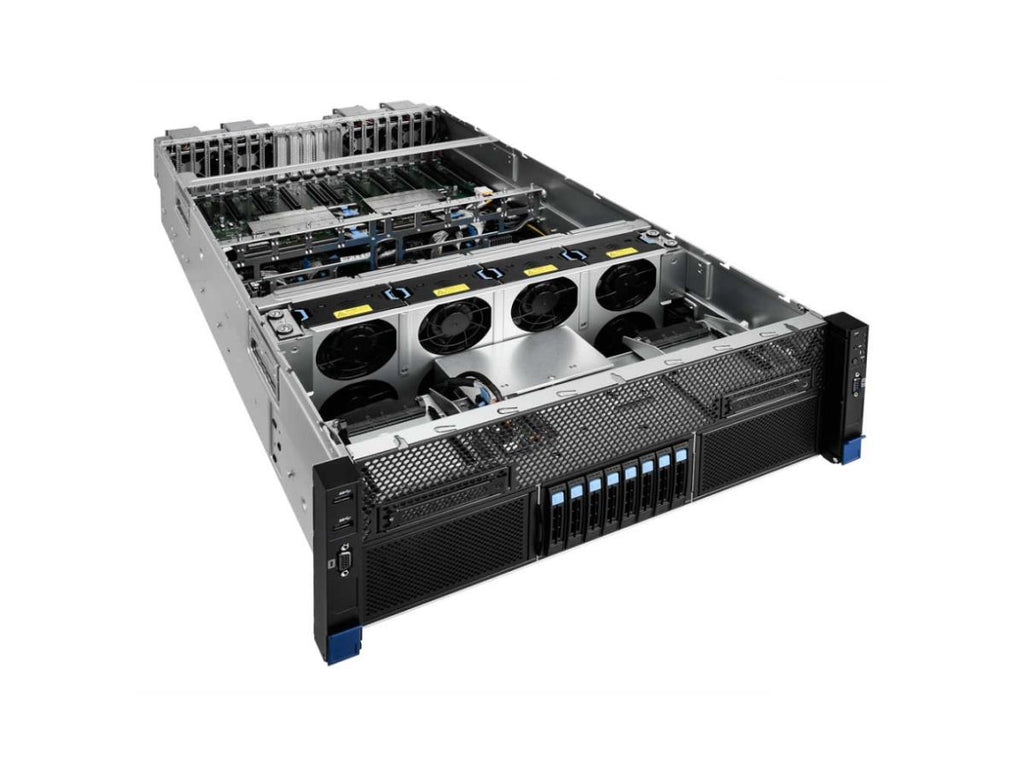

Tyan G4520G6U2BC-N 4U2S 8-GPU AI 8 NVMe U.2 GPU Server
Specifications
Model Number: G4520G6U2BC-N
Brand: Tyan
Alt Part Number(s): G4520G6U2BC-N
Product Type: Server
Technical Description
Brand: Tyan
Model: G4520G6U2BC-N
System Type: Server Barebone
Cabinet Form Factor: 4U Rackmount, GPU Servers
Processor / Type: Xeon
Processor / Max Supported Qty: 2
Mainboard / Chipset Type: AST2600
RAM / Technology: DDR5
RAM / Total Slots Qty: 8
RAM / Max Supported Size: 8792 GB
Hard Drive / Size: 2.5"
Hard Drive / Interface Type: NVMe
Hard Drive / Bays Qty: 8
Data Link Protocol: Gigabit Ethernet
Power / Device Type: Power Supply
Power / Provided (W): 9.6 KW
Power / Voltage Required: 200-240V
Interfaces & Connections: (2) USB 3.2 Gen.1 ports / (1) COM Port / (1) VGA port / (1) GbE dedicated for IPMI
Expansion Slots Total (Free): (11) PCIe Gen 5 x16 slots (FH/FL) / (3) PCIe Gen.5 x16 OCP 3.0 mezzanine slots
Features: 32 RDIMM slots with DDR5-6400 (1DPC) / 5200MHz (2DPC) / MRDIMM 8000 (1DPC) P core memory support / 2 Broadcom PEX89104 PCIe 5.0 switch deployed / 11 FH/FL PCIe 5.0 x16 / 8 NVMe U.2 hot-swap, tool-less drive bays / 3 NVMe M.2 22110/2280 slots / 3 PCIe 5.0 x16 OCP v3.0 LAN mezzanine slot / Hot-swap fans and redundant PSU
