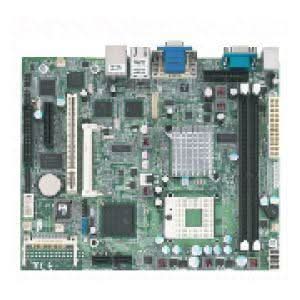

Tyan Computers S3095G3NR Intel-945GM Socket-478 DDR2-667MHz Flex ATX Motherboard

Tyan ComputersSKU: 865390
Model Number: S3095G3NR
Condition: New
No reviews

Price:
Sale price$179.00

Description

Specifications

Mfr Part Number:                 S3095G3NR

Condition:                           New

Brand:                                Tyan Computers

Model Number:                    S3095G3NR

Type:                                 Motherboard



Technical Description

Brand:                               TYAN

Model:                               S3095G3NR

Socket Type:                      478

CPU Type:                          Intel Core 2 Duo/Core Duo/Core Solo

System Bus:                       667/533MHz

Chipsets:                           Intel 945GM, Intel ICH7M-DH

DDR2 Slots:                       2 x 240Pin

DDR2 Standard:                 DDR2 667

Max Memory Supported:     4GB

Channel Supported:            Dual Channel

PCI Express x4:                 1

PCI Slots:                         1

Other Slots:                      1 x Mini-PCI slot

PATA:                              1 x ATA 100 2 Dev. Max

SATA:                              2 x SATA 1.5Gb/s

SATA RAID:                      RAID 0, 1 and AHCI

Video Chipset:                  Intel GMA 950

LAN Chipset:                     Intel 82573V

LAN Speed:                       10/100/1000Mbps

Second LAN Chipset:          Intel 82573V

Second LAN Speed:            10/100/1000Mbps

Third LAN Chipset:              Intel 82551QM

Third LAN Speed:                10/100Mbps

Max LAN Speed:                 Dual 10/100/1000Mbps + 10/100Mbps

PS/2:                                2

COM:                                1

Video Ports:                       D-Sub + DVI

S-Video:                            1

USB 1.1/2.0:                      2 x USB 2.0

Onboard USB:                    2 x USB 2.0

Onboard 1394:                  2 x 1394a

Form Factor:                      Flex ATX

Dimensions:                      9.0" x 7.5"
