Description
Overview

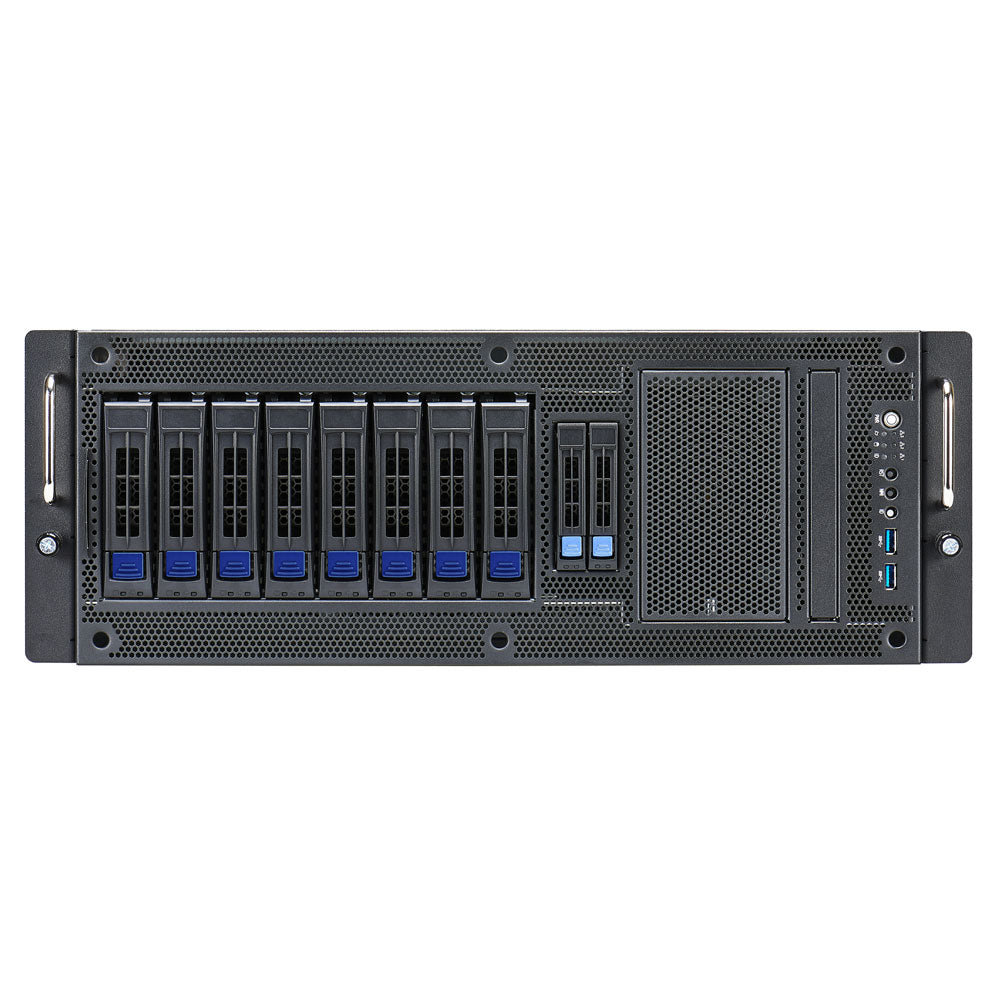

Tyan B8030F65TV8E2H-2T-N AMD EPYC 7003 Series 3rd Gen Server
Specifications
Model Number: B8030F65TV8E2H-2T-N
Brand: Tyan
Alt Part Number(s): B8030F65TV8E2H-2T-N
Product Type: Server
Technical Description
Brand: Tyan
Model: B8030F65TV8E2H-2T-N
Model: Tyan Transport HX FT65T-B8030
Form Factor: 4U Rackmount
Processor Socket: Socket SP3 (no CPU included)
Chipset: Tyan S8030GM2NE
Memory:
-
Technology: DDR4 SDRAM
-
Slots: 8 × DIMM (288-pin)
-
Max Capacity:
-
512 GB Registered
-
1024 GB Load-Reduced (LRDIMM)
-
2048 GB 3DS Load-Reduced
-
-
Features: Registered, LRDIMM, 3DS LRDIMM, 3DS Registered
Storage:
-
Hot-swap Bays:
-
2 × 2.5"
-
8 × 3.5"
-
-
Drive Support: No drives included
Graphics:
-
Controller: ASPEED AST2500
-
Interface: VGA (DB-15)
Networking:
-
Controllers: Intel I210, Intel X550, Realtek RTL8211E
-
Ports:
-
2 × 10GbE RJ-45
-
2 × 1GbE RJ-45
-
1 × Dedicated management (1GbE) RJ-45
-
-
Remote Management: IPMI 2.0
Interfaces:
-
USB: 4 × USB 3.0 Type-A (2 front, 2 rear)
-
Serial: 1 × DB-9
-
VGA: 1 × DB-15
Expansion Slots:
-
5 × PCIe 4.0 x16
-
1 × PCIe 4.0 x8 (via riser card only)
-
2 × M.2 (2280/22110)
-
1 × U.2
Cooling:
-
Built-in Devices: Watchdog timer, 5 fans
Power Supply:
-
Installed: 1 × 2000W
-
Voltage: AC 110–240V (50–60 Hz)
-
Efficiency: 80 PLUS Gold
Dimensions & Weight:
-
Width: 17.2 in
-
Depth: 25.6 in
-
Height: 6.9 in
Environmental Specs:
-
Operating Temperature: 50–95 °F
-
Operating Humidity: Up to 90% (non-condensing)
Compliance:
-
RoHS, VCCI Class A, DOC-A, RCM Class A, FCC SDOC Class A, SMBIOS 3.3
Boost your enterprise performance with the Tyan B8030F65TV8E2H-2T-N AMD EPYC 7003 Series 3rd Gen Server —ORDER TODAY!
