Description
Overview

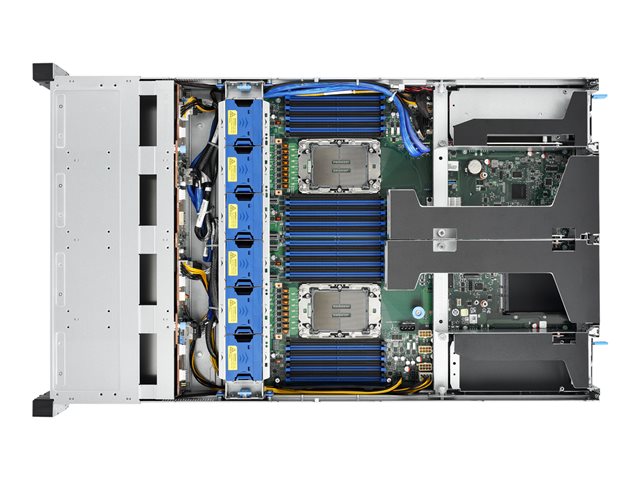

Tyan B7132T75E8HR Intel Xeon SP Series 4th Gen Server
Specifications
Model Number: B7132T75E8HR
Brand: Tyan
Alt Part Number(s): B7132T75E8HR
Product Type: Server
Technical Description
Brand: Tyan
Model: B7132T75E8HR
Product Description: Tyan Thunder HX TS75-B7132 – 2U Rackmount Server (No CPU, No RAM, No HDD)
Form Factor: 2U Rackmount
Processor Socket: LGA4677 Socket-E
Max CPU Supported: 2 (Upgradable)
Chipset: Intel C621A
Motherboard: Tyan S7132GM2NRE
Memory:
-
Slots: 32 × DIMM 288-pin
-
Installed: 0 GB
-
Max Supported: 4096 GB DDR5 SDRAM
-
Features: Registered, 8-channel architecture, 3DS registered
Storage:
-
Hot-Swap Bays: 8 × 3.5"
-
Installed Drives: None
-
Controller: RAID (SATA 6Gb/s)
-
RAID Levels: 0, 1, 5, 10
Optical Drive: Not included
Graphics:
-
Controller: ASPEED AST2600
-
Interface: VGA (rear)
Networking:
-
Ports: 2 × Gigabit Ethernet (Intel I210-AT, Realtek RTL8211F)
-
Management Port: 1 × Dedicated GbE for IPMI
-
Protocols: Ethernet, Fast Ethernet, Gigabit Ethernet
-
Remote Management: IPMI 2.0
Expansion:
-
PCIe Slots:
-
1 × PCIe 5.0 x4
-
4 × PCIe 5.0 x16
-
-
M.2 Slots: 2 × M.2 (2280/22110)
Interfaces:
-
3 × USB 3.2 Gen 1 (2 front, 1 rear)
-
1 × VGA
-
2 × RJ-45 (Gigabit LAN)
-
1 × RJ-45 (management LAN)
Cooling: 6 × 60 mm fans
Power:
-
Power Supplies: 2 × 1600W (Redundant, 1+1)
-
Voltage: AC 100–127V / 200–240V (50–60 Hz)
-
Certification: 80 PLUS Platinum
Operating System: Not included
Dimensions & Weight:
-
Width: 17.3 in
-
Depth: 29.6 in
-
Height: 3.4 in
-
Weight: 44.75 lbs
-
Shipping Weight: 72.97 lbs
Environmental:
-
Operating Temperature: 50°F to 95°F
Compliance: CB, RoHS, C-Tick Class A, LVD, VCCI Class A, DOC-A, FCC SDOC Class A, SMBIOS 3.3
Boost your enterprise performance with the Tyan B7132T75E8HR Intel Xeon SP Series 4th Gen Server —ORDER TODAY!
