Description
Overview

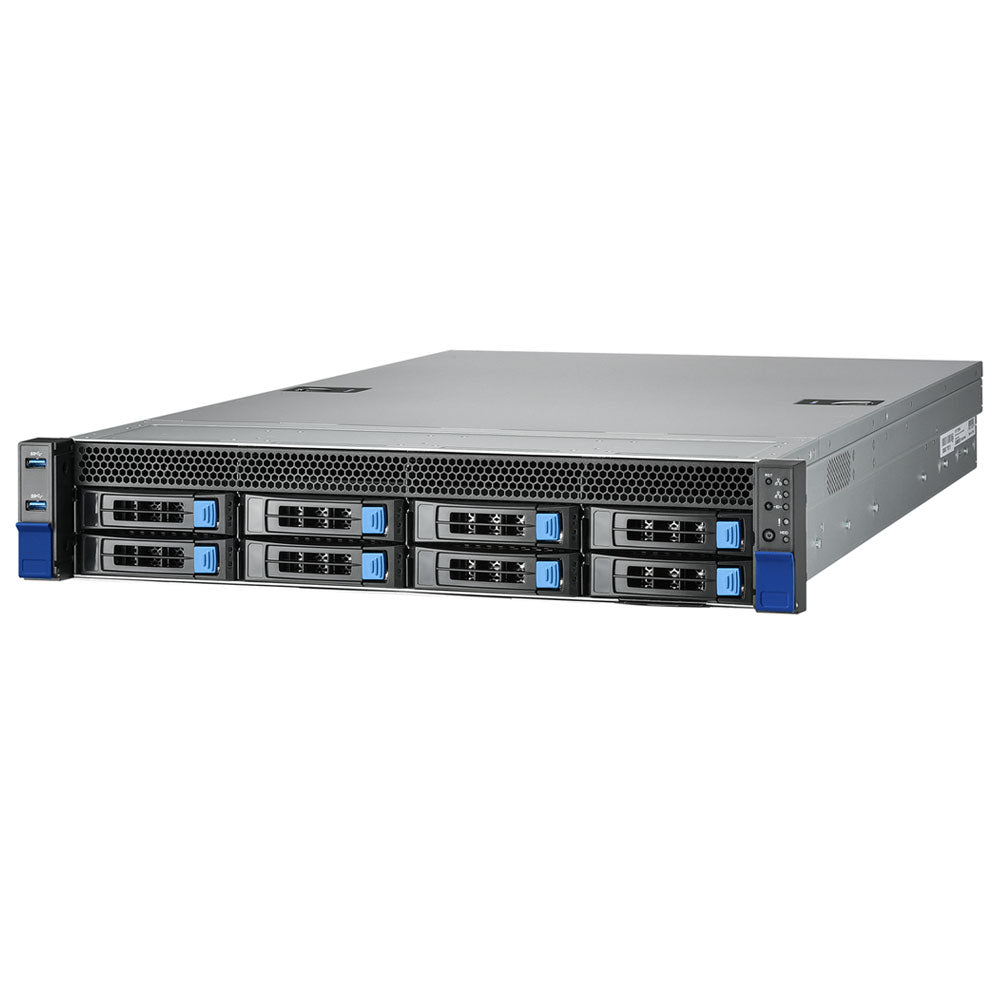

Tyan B7132T75E8HR-2T Intel Xeon SP Series 4th Gen Server
Specifications
Model Number: B7132T75E8HR-2T
Brand: Tyan
Alt Part Number(s): B7132T75E8HR-2T
Product Type: Server
Technical Description
Brand: Tyan
Model: B7132T75E8HR-2T
Product Description: Tyan Thunder HX TS75-B7132 – 2U Rackmount Server (No CPU, No RAM, No HDD)
Form Factor: 2U Rackmount
Processor Socket: LGA4677 Socket-E
Max Supported CPUs: 2
Chipset: Intel C621A
Motherboard: Tyan S7132GM2NRE-2T
Memory:
-
Slots: 32 × DIMM 288-pin
-
Installed: 0 GB
-
Max Capacity: 4096 GB DDR5 SDRAM
-
Features: Registered, 8-channel memory architecture, 3DS registered
Storage:
-
Drive Bays: 8 × hot-swap 3.5" bays
-
Installed Drives: None
-
Storage Controller: RAID (SATA 6Gb/s)
-
RAID Levels Supported: 0, 1, 5, 10
Optical Drive: Not included
Graphics:
-
Controller: ASPEED AST2600
-
Interface: VGA (rear)
Networking:
-
2 × 10 Gigabit Ethernet ports (RJ-45)
-
1 × Dedicated Gigabit Ethernet for IPMI
-
Controllers: Intel X710-AT2, Realtek RTL8211F
-
Supported Protocols: Ethernet, Fast Ethernet, Gigabit Ethernet, 10 Gigabit Ethernet
-
Remote Management: IPMI 2.0
Expansion Slots:
-
1 × PCIe 5.0 x4
-
4 × PCIe 5.0 x16
-
2 × M.2 slots (2280/22110)
Interfaces:
-
3 × USB 3.2 Gen 1 (2 front, 1 rear)
-
1 × VGA (rear)
-
2 × 10GbE LAN ports (RJ-45)
-
1 × Management LAN port (RJ-45)
-
Buttons: Power, Reset, ID
Cooling: 6 × 60 mm fans
Power:
-
Power Supplies: 2 (Installed)
-
Redundancy: Yes (1+1)
-
Voltage: AC 100–127V / 200–240V (50–60 Hz)
-
Output: 1600W
-
Certification: 80 PLUS Platinum
Operating System: Not included
Dimensions:
-
Width: 17.3 in
-
Depth: 29.6 in
-
Height: 3.4 in
-
Weight: 44.75 lbs
Shipping Weight: 72.97 lbs
Environmental Parameters:
-
Operating Temperature: 50°F to 95°F
Compliance: CB, RoHS, C-Tick Class A, LVD, VCCI Class A, DOC-A, FCC SDOC Class A, SMBIOS 3.3
Boost your enterprise performance with the Tyan B7132T75E8HR-2T Intel Xeon SP Series 4th Gen Server —ORDER TODAY!
*Product descriptions, images, and part numbers are subject to change and may not accurately reflect manufacturer product alterations. For the latest and most precise information, kindly refer to the manufacturer's website and use the item's manufacturer part number.
