Description
Overview

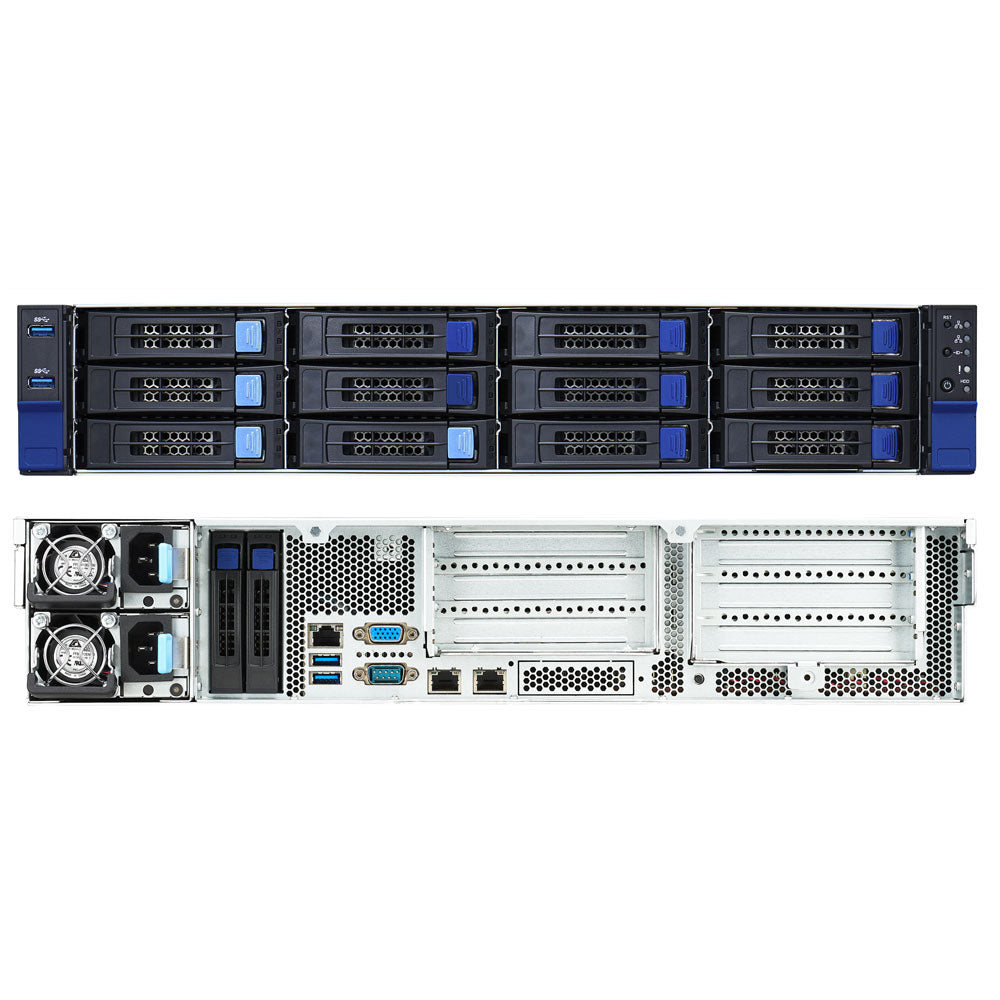

Tyan B7126T65V10E4HR Intel Xeon SP Series 3rd Gen Server
Specifications
Model Number: B7126T65V10E4HR
Brand: Tyan
Alt Part Number(s): B7126T65V10E4HR
Product Type: Server
Technical Description
Brand: Tyan
Model: B7126T65V10E4HR
Product Description: Tyan Thunder SX TS65-B7126 – 2U Rackmount Server (No CPU, No RAM, No HDD)
Form Factor: 2U Rackmount
Scalability: 2-way
CPU Socket: LGA4189 (Supports up to 2 CPUs – no CPU installed)
Chipset: Intel C621A
Motherboard: Tyan S7126GM2NRE
Memory:
-
Slots: 16 DIMM (288-pin)
-
Installed: 0 GB
-
Max Capacity: 2048 GB DDR4 SDRAM
Storage:
-
Drive Bays: No HDD installed
-
Storage Controller: RAID (SATA 6Gb/s)
-
Supported RAID Levels: 0, 1, 5
Optical Drive: Not included
Graphics:
-
Controller: ASPEED AST2500
-
Interface: VGA (1 rear)
Networking:
-
Ethernet Controller: Realtek RTL8211FD-CG
Power:
-
Voltage: AC 200–240V
-
Efficiency: 80 PLUS Platinum Certified
OS: No operating system provided
Dimensions:
-
Width: 17.3 in
-
Depth: 25.6 in
-
Height: 3.4 in
-
Weight: 39.68 lbs
Shipping Weight: 56.22 lbs
Environmental Operating Range:
-
Temperature: 50°F to 95°F
Compliance: CB, RoHS, LVD, VCCI Class A, DOC-A, RCM Class A, ACPI 6.1, SMBIOS 3.0, FCC SDOC Class A
Boost your enterprise performance with the Tyan B7126T65V10E4HR Intel Xeon SP Series 3rd Gen Server —ORDER TODAY!
*Product descriptions, images, and part numbers are subject to change and may not accurately reflect manufacturer product alterations. For the latest and most precise information, kindly refer to the manufacturer's website and use the item's manufacturer part number.
