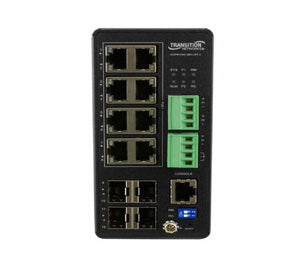

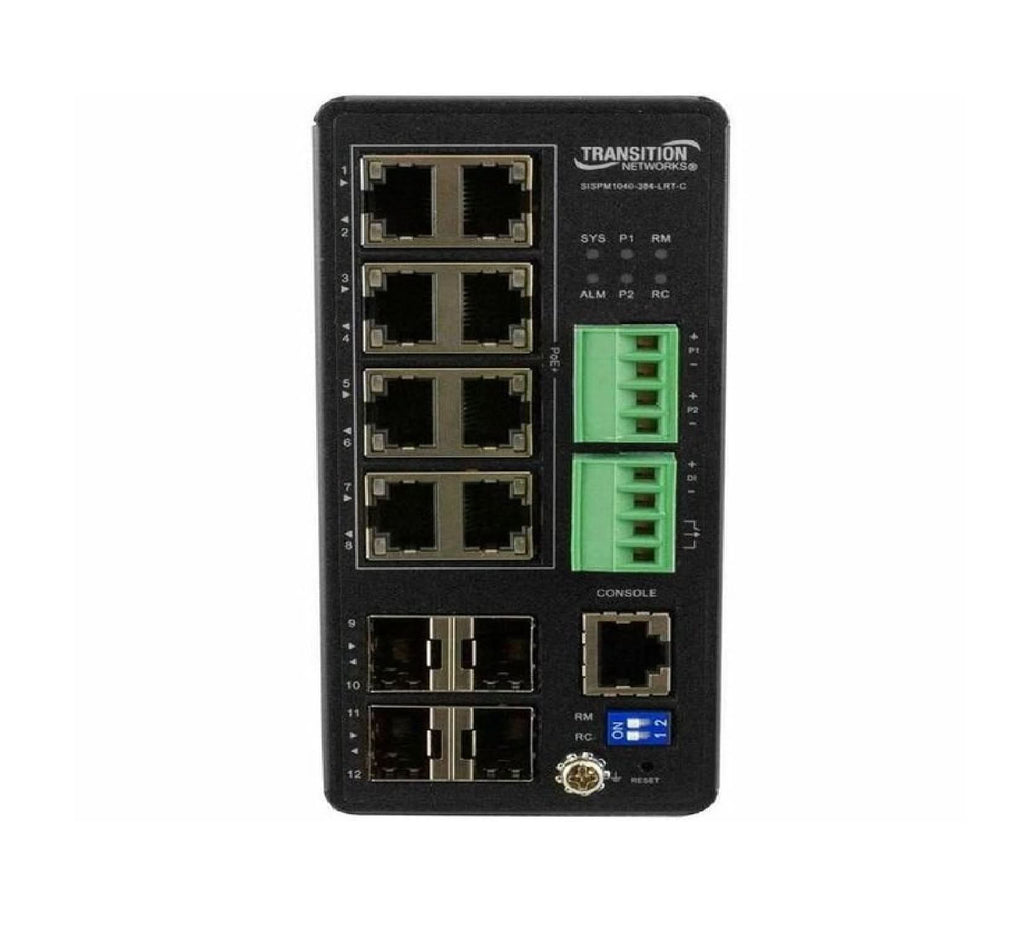

Transition Networks SISPM1040-384-LRT-C 12 Ports 11.1W DIN Rail PoE Ethernet Switch
SPECIAL ORDER ITEM
This product is available for special order and may take longer to ship.
AVAILABILITY & SHIPPING
We source this item directly from the OEM as a special order, which may result in longer lead times. We’ll keep you updated throughout the process.
NEED IT SOONER?
Contact us to explore expedited options or find a comparable in-stock alternative.
SPECIAL ORDER FULFILLMENT
Saitech Inc. sources special orders directly from manufacturers and authorized distributors, including hard-to-find, end-of-life, and build-to-order products. These items may have longer lead times, and our team will keep you informed throughout the process.
- Overview
The Transition Networks SISPM1040-384-LRT-C is an industrial-grade managed Gigabit Ethernet switch designed for reliable network connectivity in harsh environments. It provides eight Gigabit PoE+ copper ports and four SFP fiber uplink slots, with a total PoE power budget of 240W. Its ruggedized design, redundant power inputs, advanced network management, and wide operating temperature range make it suitable for industrial automation, transportation, security surveillance, and outdoor network installations
Specifications
Model Number: SISPM1040-384-LRT-C
Brand: Transition Networks
Alt Part Number(s): SISPM1040-384-LRT-C
Product Type: PoE Ethernet Switch
Technical Descriptionmur
Brand: Transition Networks
Model Number: SISPM1040-384-LRT-C
Total Ports: 12
Copper Ports: 8 × 10/100/1000Base-T
Fiber Ports: 4 × 100/1000Base-X SFP
Ethernet Speed: Gigabit Ethernet
PoE Standard: IEEE 802.3af / 802.3at
PoE Power Budget: 240W
Maximum PoE Output: 30W per port
Switching Bandwidth: 24 Gbps
MAC Address Table: 8K
Jumbo Frame: Up to 9.6KB
Input Voltage: DC 44–57V
Power Inputs: Dual redundant DC inputs
Power Consumption (without PoE): 11.1W
Mounting: DIN Rail
Enclosure Protection: IP30
