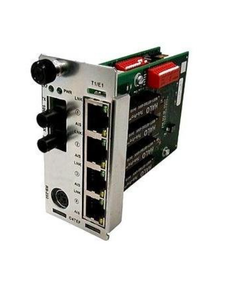

Transition Networks Media Converter Single-Mode 1310NM Point System T1/E1 to Fiber Transport Mux Slide-In-Module C4TEF1014-100

Overview

Transition Networks C4TEF1014-100 Media Converter This product offer a low cost transport capability for four T1/E1 and one RS232 data channel line. The offering will provide copper connections compatible with G.703 and AMI/B8ZS/HDB3, while the optical connection will run at 155Mbps. A hardware-based solution guarantees the constant bit rate of TDM transport without requiring traffic management. The product provides physical layer status monitoring and alarm classification functions for Telecom operators to manage their fiber optic network and reduce operation and maintenance costs. Target applications of the converter include FTTx, such as Fiber-to-the-Business, Fiber-to-the-Building, Fiber-to-the-MDU and Fiber-to-the-Home.



Specifications

Model Number:  C4TEF1014-100

Brand:  Transition Networks

Alt Part Number(s):  C4TEF1014-100

Product Type:  Media Converter



Technical Description

Brand:  Transition Networks

Model:  C4TEF1014-100

Line Rate:  T-1/E-1

Framing Format:  G.703

Max Transfer Distance:  12.4 miles

Line Coding Format:  AMI, B8ZS, HDB3

Connectivity Technology:  Wired

Remote Management Protocol:  SNMP

Interfaces:  4 x T1/E1 - RJ-48 1 x serial - 6 pin DIN 1 x network - SC single-mode x 2

Output Voltage:  208 - 230 V AC

Protocols:  Web, SNMP, Telnet

Optical Wave Length:  1310 nm

Width:  1.7 in

Depth:  5 in

Height:  3.4 in
