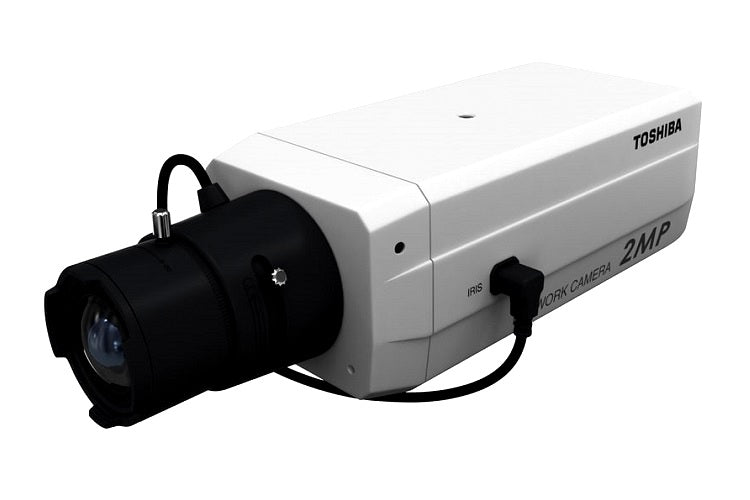

Toshiba IK-WB30A 2-Megapixel 2.8-12mm Day-Night IP Network Video Camera

Overview

The IK-WB30A IP Network Video Day/Night Camera Kit with 2.8-12mm Lens with a 1/3.2" (2M) CMOS sensor delivers clear images at a resolution up to 1600 x 1200. A minimum illumination of 0.2 lux at f/1.2 ensures high-quality imagery even in extreme low-light conditions. The kit includes a mount and an optional 12VDC power supply. Capable of working as an IR night vision camera during night and a high-resolution color camera during daylight, the camera is ideal to be used in schools, public spaces, and casinos. Quad Streaming feature enables the IK-WB30A camera to simultaneously transfer MPEG4 and MJPEG images thereby making it compatible with limited bandwidth networks. In addition, it allows you to store high-resolution MJPEG onto an NVR. The camera uses IR cut filter to switch between color and B&W as per the changes in ambient lighting. Backlight Compensation adjusts video gain to correct the exposure when the object being captured is in front of a bright light. Auto White Balance adjusts the red and blue signals in the MWB mode by taking a standard white color reference to get the most natural colors. Automatic Gain Control adjusts the signal strength to maintain a constant brightness level. Besides tamper detection and motion detection, the IK-WB30A camera also supports privacy masking that allows you to mask infinite zones of a scene for privacy reasons. With ePTZ operation, you can move the focus to the viewing area for a close-up view for easy identification of remote objects without moving the camera physically. The SD card slot for on-board storage prevents data loss due to network connection and also makes efficient use of bandwidth by reducing the transmission of unnecessary data. Power is supplied to the camera through PoE; hence the camera gets power from the network itself without any extra wiring for auxiliary power outlets.



Specifications

Model Number:  IK-WB30A

Brand:  Toshiba

Alt Part Number(s):  IK-WB30A

Product Type:  Network Security Camera



Technical Description

Brand:  Toshiba

Model:  IK-WB30A

Image Sensor Type:  CMOS

White Balance Modes:  Auto

Illumination:  0.04 Lux, 0.01 Lux

Color Supported:  Color

Video Formats:  MPEG-4, MPEG

Maximum Video Resolution:  1600 x 1200

Image Formats:  JPEG

Maximum Image Resolution:  1600 x 1200

Lens Mount Type:  CS Mount

Digital Zoom:  4x

Shortest Shutter Speed:  1/40000 Second

Longest Shutter Speed:  1/5 Second

Connectivity Technology:  Cable

Ethernet:  Yes

Ethernet Technology:  Fast Ethernet, TCP/IP, HTTP, HTTPS, UPnP, RTSP, RTP, RTCP, IGMP, SMTP, FTP, DHCP, NTP, DNS, DDNS, PPPoE, SNMP

Network (RJ-45):  Yes

Serial:  Yes

OS:  Windows XP, Vista Business

Web Browser:  Internet Explorer Ver 7.0 or 8.0

Certifications & Standards:  FCC/B, IC (ICES-003)

Security Features:  Multi level ID/Password, IP address filtering, HTTPS, 802.1x Port-based authentication

Platform Supported:  PC

Green Compliant:  Yes

Green Compliance Certificate/Authority:  RoHS

Height:  2.2"

Width:  2.8"

Depth:  6.0"



Features

1/3.2" (2M) CMOS sensor

Delivers clear images at a resolution up to 1600 x 1200

Minimum illumination of 0.2 lux at f/1.2 ensures high-quality imagery even in extreme low-light conditions

Includes a mount and an optional 12VDC power supply

D/N Capability - Works as an IR night vision camera during night and a high-resolution color camera during daylight

Ideal to be used in schools, public spaces and casinos

Quad Streaming feature - enables the camera to simultaneously transfer MPEG4 and MJPEG images thereby making it compatible with limited bandwidth networks

Allows you to store high-resolution MJPEG onto an NVR

IR cut filter to switch between color and B&W as per the changes in ambient lighting

Backlight Compensation - adjusts video gain to correct the exposure when the object being captured is in front of a bright light

Auto White Balance - adjusts the red and blue signals in the MWB mode by taking a standard white color reference to get the most natural colors

Automatic Gain Control - adjusts the signal strength to maintain a constant brightness level

Supports Tamper Detection and Motion Detection

Privacy Masking allows you to mask infinite zones of a scene for privacy reasons

ePTZ operation - you can move the focus to the viewing area for a close-up view for easy identification of remote objects without moving the camera physically

SD card slot - prevents data loss due to network connection and also makes efficient use of bandwidth by reducing the transmission of unnecessary data

Power is supplied to the camera through PoE; hence the camera gets power from the network itself without any extra wiring for auxiliary power outlets



*Product descriptions, images, and part numbers are subject to change and may not accurately reflect manufacturer product alterations. For the latest and most precise information, kindly refer to the manufacturer's website and use the item's manufacturer part number.
