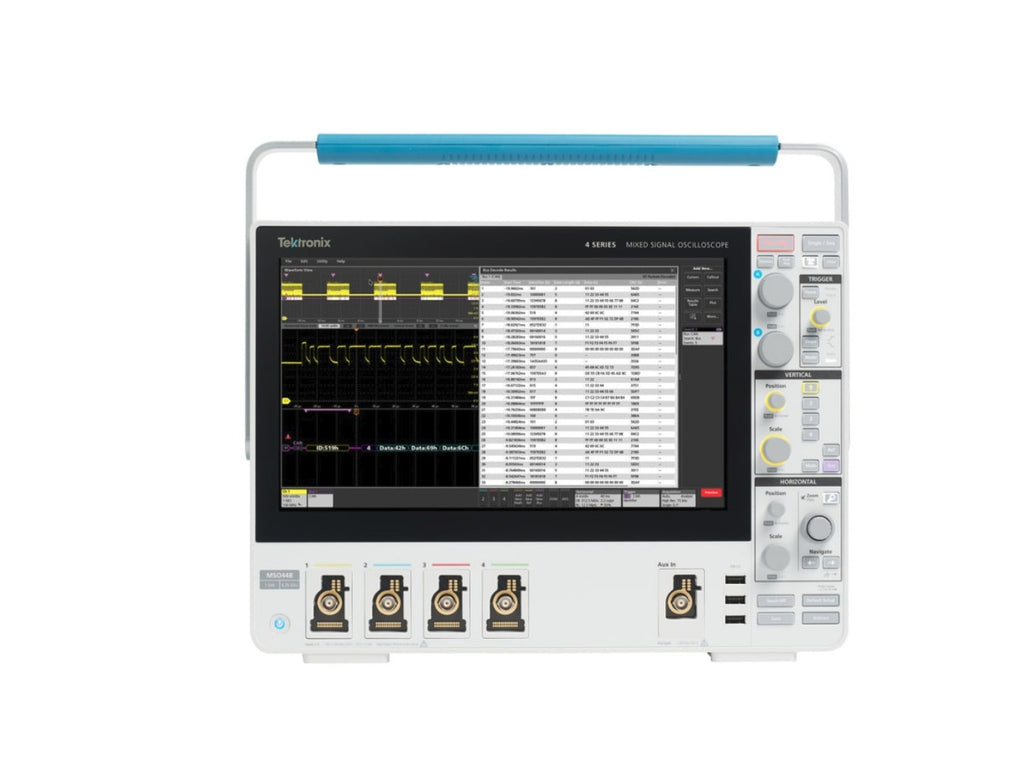

Tektronix MSO44B/4-BW-200 4 Series B MSO 13.3" LCD Mixed Signal Oscilloscope
SPECIAL ORDER ITEM
This product is available for special order and may take longer to ship.
AVAILABILITY & SHIPPING
We source this item directly from the OEM as a special order, which may result in longer lead times. We’ll keep you updated throughout the process.
NEED IT SOONER?
Contact us to explore expedited options or find a comparable in-stock alternative.
SPECIAL ORDER FULFILLMENT
Saitech Inc. sources special orders directly from manufacturers and authorized distributors, including hard-to-find, end-of-life, and build-to-order products. These items may have longer lead times, and our team will keep you informed throughout the process.
- Overview
Overview
The product code MSO44B/4-BW-200/TEK MSO44B identifies a Tektronix 4 Series B MSO 31.25Mpts Mixed Signal Oscilloscope with 4 FlexChannel® inputs and a 200MHz bandwidth. 13.3-inch TFT color, full HD (1920 x 1080) resolution, capacitive (multi-touch) touchscreen with gesture support.
Specifications
Model Number: MSO44B/4-BW-200
Brand: Tektronix
Alt Part Number(s): TEK MSO44B
Product Type: Mixed Signal Oscilloscope
Technical Description
Brand: Tektronix
Model Number: MSO44B/4-BW-200
Series: 4 Series B MSO
Analog Channels:4
Digital Channels: 32
Memory: 31.25 Mpts
Vertical Resolution: 12 bit
Bandwidth: 200MHz
Accessories: HC4, RM4
Attenuation: 2X
Display Type: 13.3" LCD Capacitive Touchscreen
Interface: LAN / Ethernet, LXI, USB Host, HDMI, USB
Sampling Rate: 6.25GS/s
Risetime: 6ns
*
