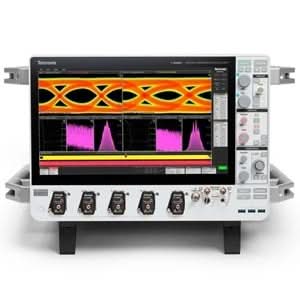

Tektronix 7 Series DPO DPO718AX 25 GHz 62.5 GS/s Digital Oscilloscope
SPECIAL ORDER ITEM
This product is available for special order and may take longer to ship.
AVAILABILITY & SHIPPING
We source this item directly from the OEM as a special order, which may result in longer lead times. We’ll keep you updated throughout the process.
NEED IT SOONER?
Contact us to explore expedited options or find a comparable in-stock alternative.
SPECIAL ORDER FULFILLMENT
Saitech Inc. sources special orders directly from manufacturers and authorized distributors, including hard-to-find, end-of-life, and build-to-order products. These items may have longer lead times, and our team will keep you informed throughout the process.
- Overview
The Tektronix DPO718AX 7 Series DPO Digital Phosphor Oscilloscope features eight analog channels, selectable bandwidth options up to 25 GHz, and real-time sample rates of 62.5 GS/s across eight channels or 125 GS/s across four channels. It provides 12-bit ADC architecture, a 15.6-inch 1920 × 1080 touchscreen, a standard 500 Mpoint acquisition record length with optional upgrades to 1 or 2 Gpoints, and removable NVMe SSD storage.
Specifications
Model Number: DPO718AX
Brand: Tektronix
Alt Part Number(s): DPO718AX
Product Type: Digital Oscilloscope
Technical Description
Brand: Tektronix
Model: DPO718AX
Analog Channels: 8 Channels
Configuration: Oscilloscope with Screen
Dimension: 12.9 in (327 mm) x 22.1 in (560 mm) x 24.4 in (620 mm) H x W x D with handles
Display: 15.6-inch TFT color touchscreen, 1920 × 1080 resolution
Harmonics: -60 dBc
Input Impedance: 50 Ohms
Interface: LAN; USB 3.0
Memory: 0.6 TB removable NVMe SSD
Modulation: AM; PM
Operating Temperature: 5 °C to +40 °C
Package Type: Benchtop
Power Consumption: 1600 W
Record Length: 500 Mpoints; Optional 1 Gpoint or 2 Gpoints
Resolution Bits: 12 bits
Sensitivity: 1 mV/div to 500 mV/div
Spurious: -80 to -60 dBc
Storage Temperature: -20 °C to +60 °C
Type: Digital
Weight: 84 lbs. (38.1 kg)
Bandwidth: 8 GHz; 10 GHz; 13 GHz; 16 GHz; 20 GHz; 25 GHz
Sample Rate: 62.5 GS/s
Supply Voltage: 100 to 240 V
