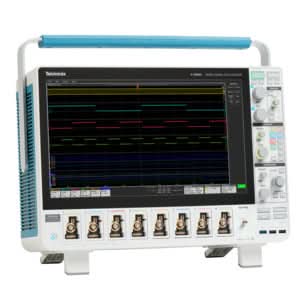

Tektronix 5 Series B MSO MSO58B/5-BW-2000 2 GHz 8-Channel Mixed Signal Oscilloscope
SPECIAL ORDER ITEM
This product is available for special order and may take longer to ship.
AVAILABILITY & SHIPPING
We source this item directly from the OEM as a special order, which may result in longer lead times. We’ll keep you updated throughout the process.
NEED IT SOONER?
Contact us to explore expedited options or find a comparable in-stock alternative.
SPECIAL ORDER FULFILLMENT
Saitech Inc. sources special orders directly from manufacturers and authorized distributors, including hard-to-find, end-of-life, and build-to-order products. These items may have longer lead times, and our team will keep you informed throughout the process.
- Overview
The Tektronix MSO58B/5-BW-2000 5 Series B MSO Mixed Signal Oscilloscope features 2 GHz analog bandwidth, eight analog channels, a 6.25 GS/s sample rate, and 12-bit ADC resolution. It includes a 15.6-inch 1920 × 1080 capacitive touchscreen, a standard 62.5 Mpoint acquisition record length expandable to 500 Mpoints with optional upgrades, and support for up to 64 digital channels using optional logic probes.
Specifications
Model Number: MSO58B/5-BW-2000
Brand: Tektronix
Alt Part Number(s): MSO58B/5-BW-2000
Product Type: Mixed Signal Oscilloscope
Technical Description
Brand: Tektronix
Model: MSO58B/5-BW-2000
Bandwidth: 2 GHz
Analog Channels: 8
Digital Channels: 64
Sampling Rate: 6.25 GS/s
Memory: 62.5 Mpts
Type: MSO
Vertical Resolution: 12 bit
Display Type: 15.6-inch TFT capacitive color touch
Series: 5 Series B MSO
Accessories: Change the label to “Compatible Probes and Accessories” unless the supplier confirms the included items.
Certificate of Calibration: Yes
Depth: 11.7"
Display: LCD TFT
Interface: LAN / Ethernet; LXI; USB Host; USB; VGA or SVGA Out
Operating Temperature Range: 32–122°F
Risetime: 0.225 ns
Warranty: 1 Year
