Overview

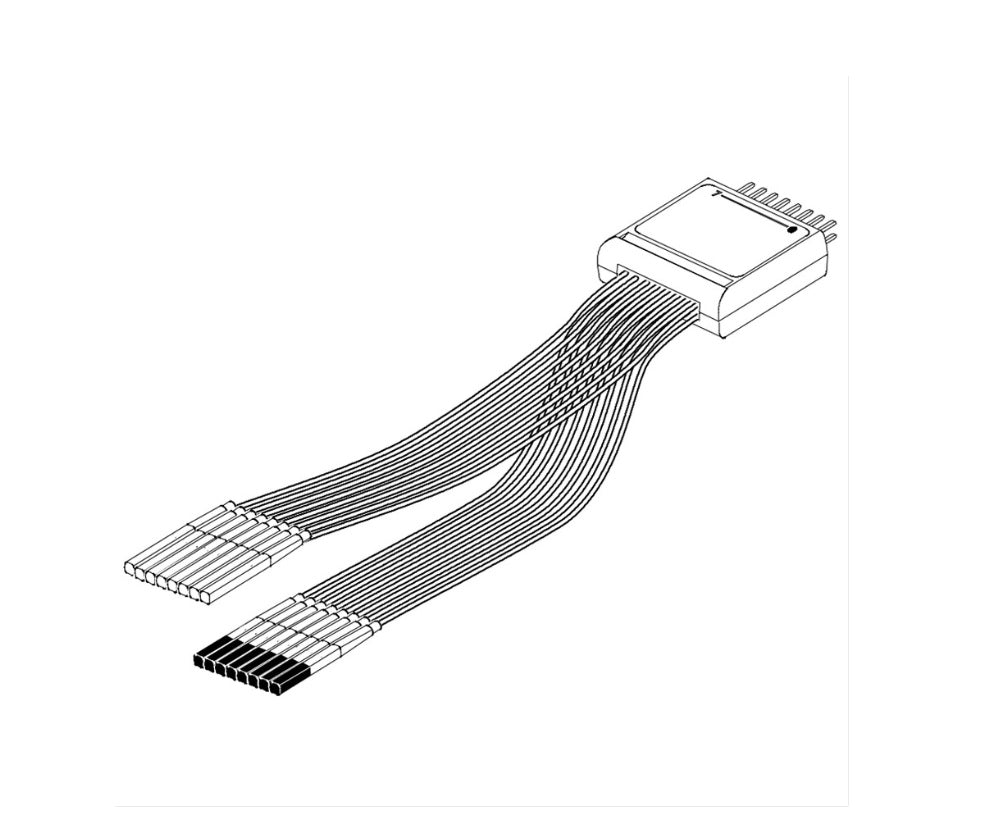

The model 196-3470-01 is an 8-channel leadset designed for single-ended connections. It is compatible with individual connections to backplanes and dense, single-ended configurations within a pin array measuring either 2 mm (0.079 inches) or 2.54 mm (0.1 inches). This leadset features two shared ground connections for all incoming signals. Additionally, each positive lead is equipped with a 150 ohm damping resistor.
Specifications
Model Number: 196-3470-01
Brand: Tektronix
Alt Part Number(s): 196-3470-01
Product Type: Differential Lead Set
Technical Description
Brand: Tektronix
Model Number: 196-3470-01
Series: P6800
Number of Channels: 8
Amplitude: 150 mV
Input Capacitance: 1pF
Compatibility Series: P6910 Series, P6810 Series, TLA7000 Series
Maximum Input Voltage: 5V
Output Voltage: 208 - 230 V AC
Protocols: Web, SNMP, Telnet
