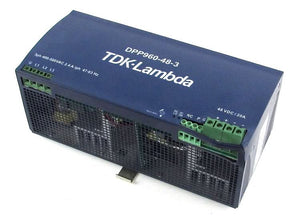

TDK-Lambda DPP960-48-3 DPP-Series 960Watts 340-575Volts AC DIN Rail Power Supply
SPECIAL ORDER ITEM
This product is available for special order and may take longer to ship.
AVAILABILITY & SHIPPING
We source this item directly from the OEM as a special order, which may result in longer lead times. We’ll keep you updated throughout the process.
NEED IT SOONER?
Contact us to explore expedited options or find a comparable in-stock alternative.
SPECIAL ORDER FULFILLMENT
Saitech Inc. sources special orders directly from manufacturers and authorized distributors, including hard-to-find, end-of-life, and build-to-order products. These items may have longer lead times, and our team will keep you informed throughout the process.
- Overview
Specifications
Model Number: DPP960-48-3
Brand: TDK-Lambda
Alt Part Number(s): DPP960-48-3
Product Type: Power Supply Unit
Technical Description
Brand: TDK-Lambda
Model: DPP960-48-3
Series: DPP
Type: Enclosed
Number of Outputs: 1
Voltage - Input: 340 ~ 575 VAC (3PH)
Voltage - Output 1: 48V
Current - Output (Max): 20A
Power (Watts): 960W
Applications: ITE (Commercial)
Voltage - Isolation: 3kV
Efficiency: 93%
Operating Temperature: -40°C ~ 71°C (With Derating)
Mounting Type: DIN Rail
Size / Dimension: 10.86" L x 4.97" W x 4.68" H (275.8mm x 126.2mm x 4.41mm)
Approvals: CE
Features
Adjustable Output
DC Input Capable
Load Sharing
*
