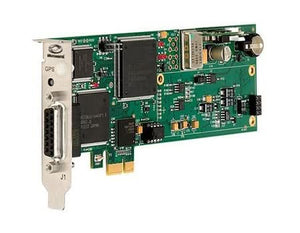

Symmetricom BC635PCIE Low Profile PCI Express Time and Frequency Processor
SPECIAL ORDER ITEM
This product is available for special order and may take longer to ship.
AVAILABILITY & SHIPPING
We’re happy to source this item specifically for you! While it may take a bit more time to arrive, we’ll keep you informed every step of the way. Shipping timelines can vary based on the manufacturer's fulfillment schedule.
NEED IT SOONER?
Contact us to explore expedited options or find a comparable in-stock alternative.
SPECIAL ORDER FULFILLMENT
Saitech Inc. partners with top-tier manufacturers and authorized distributors to fulfill special order requests — including hard-to-find, end-of-life, and build-to-order products. Our team ensures every special order is handled with precision, transparency, and dedicated support from start to finish.
- Overview
Overview
Symmetricom's Bc635PCIe PCI Express timing module provides unparalleled precise time and frequency to the host computer and peripheral systems. Time is typically acquired from time code signals such as IRIG B. Extremely accurate time provided to the host computer. Integration of the module is easily facilitated with standard drivers for Windows, Linux, and Solaris available for download. Extensive time code generation and translation are supported. The generator outputs either IRIG A, B, G, E, IEEE 1344, NASA 36, XR3 or 2137 in both amplitude modulated (AM) and DC level shift (DCLS) formats. The translator reads and may be used to discipline the 10 MHz oscillator to either the AM or DCLS format of IRIG A, B, G, E, IEEE 1344, NASA 36, XR3 or 2137 time codes. The module also has a state-of-the-art DDS rate synthesizer capable of 0.0000001 PPS to 100 MPPS. Three Event Time Capture registers provide a means of latching time of external events. A key feature of the Bc635PCIe is the ability to generate interrupts on the PCI bus at programmable rates. These interrupts can be used to synchronize applications on the host computer as well as signal specific events.
Specifications
Model Number: BC635PCIE
Brand: Symmetricom
Alt Part Number(s): BC635PCIE
Product Type: PCI Express Card
Technical Description
Symmetricom BC635PCIE Low Profile PCI Express Time and Frequency Processor.
Features
IRIG A, B, G, E, IEEE 1344, NASA 36, XR3 & 2137 Time Code Inputs and Outputs
Simultaneous AM and DCLS Time Code Inputs and Outputs
100-Nanosecond Clock Resolution for Time Requests
Programmable <
1, 5, or 10 MPPS Rate Generator Output
1 PPS and 10 MHz Inputs
Three (3) External Event Time Capture/Interrupts
Programmable Time Compare Output/Interrupt
Zero Latency Time Reads
Battery Backed Real Time Clock (RTC)
Low Profile PCI Express Form Factor
Linux, Solaris & Windows Software Drivers/SDKs for download
Superior User Interface & Documentation
Optional OCXO Upgrade
Benefits
Precise Sub-Microsecond Time Available to Host Computer Applications
Easy Integration Facilitated with included Windows, Linux & Solaris SDKs & Drivers
Extremely Fast Time Reads
Programmable Time & Frequency Functions to Quickly Customize for Specific Applications
Wide Variety of Time Codes Facilitate
Dedicated and responsive technical support to assist in PCIe card integration
Easy Integration with Existing Systems
Very Well Documented for Easy & Fast System Integration
*
