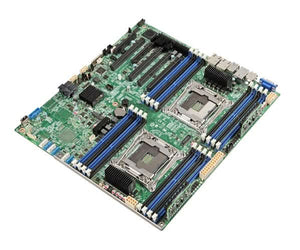

Intel S2600CW2 Xeon E5-2600 v3 Chipset-C612 Socket-R3 DDR4-2133MHz SSI EEB Server Motherboard

$489.00 Regular price
Sale price$489.00
IntelSKU: 1045811
Model Number: S2600CW2
Alt. Part Number: DBS2600CW2
Condition: New
In stock:  Yes
No reviews

For Volume / Bulk Purchase Discounts Available

Shop with confidence! Saitech Inc is an authorized Intel Partner Reseller.

Learn more by visiting the manufacturer's website.


This item is a Special Order and may take additional shipping time.
Place your order with SAITECH, and we will make every effort to have the item delivered to you as soon as possible.

How We Process Orders
Fastest Shipping: To get your products to you as quickly as possible, most orders placed directly by one of our several leading distributors or by the product's manufacturer. As a result, no one can get your orders to you faster than we can!

Strong Industry Alliances: SAITECH maintains long-standing alliances with the industry's leading distributors and manufacturers. As a result, we are the top source for your computer, office and Server technology needs.

Lowest Possible Prices: Advanced electronic interfaces continually scan our distributors for their best current pricing and availability. While changes in availability between different distributors may result in some price fluctuations, it ensures that you will always receive the lowest possible prices on currently available products!

Realtime Inventory: Live inventory updates are not available for this product.



Model Number: S2600CW2

Brand:  Intel

Alt. Part Number(s):  DBS2600CW2

Product Type:  Server Motherboard


Technical Description

Brand:  Intel

Model:  S2600CW2

Compatible Product Series:  Intel® Xeon® processor E5-2600 v3 product family

Board Form Factor:  SSI EEB 12" x 13"

Chassis Form Factor:  Rack or Pedestal

Socket:  Socket R3

Integrated Systems Available:  No

Integrated BMC with IPMI:  IPMI 2.0 with OEM extensions

Rack-Friendly Board:  Yes

Embedded Options Available:  No

TDP:  145 W

Board Chipset:  Intel® C612 Chipset (Intel® DH82029 PCH)

Max Memory Size (dependent on memory type):  1024 GB

Memory Types:  DDR4 ECC RDIMM 1600/1866/2133, DDR4 ECC LRDIMM 1600/1866/2133

Memory Channels:  8

Max Memory Bandwidth:  136 GB/s

Physical Address Extensions:  46-bit

Toatl DIMMs:  16

ECC Memory Supported:  Yes

Integrated Graphics:  Yes

Graphics Output:  VGA

Discrete Graphics:  Supported

PCI Express Revision:  3.0

Max PCI Express Lanes:  84

PCIe x8 Gen 3:  1

PCIe x16 Gen 3:  4

PCIe x4 Gen 2.x:  1

USB Revision:  2.0 & 3.0

Toatl USB Ports:  7

Total SATA Ports:  10

RAID Configuration:  PCH SATA 6G, ESRT2 RAID 0,1,10

Total Serial Ports:  1

Total LAN Ports:  2

Integrated LAN:  2x 1-GbE

Firewire:  No

Embedded USB (eUSB) Solid State Drive Option:  Yes

Integrated SAS Ports:  0

Integrated InfiniBand*:  No

Max CPU Configuration:  2

Low Halogen Options Available:  See MDDS


*Product descriptions, images, and part numbers are subject to change and may not accurately reflect manufacturer product alterations. For the latest and most precise information, kindly refer to the manufacturer's website and use the item's manufacturer part number.
